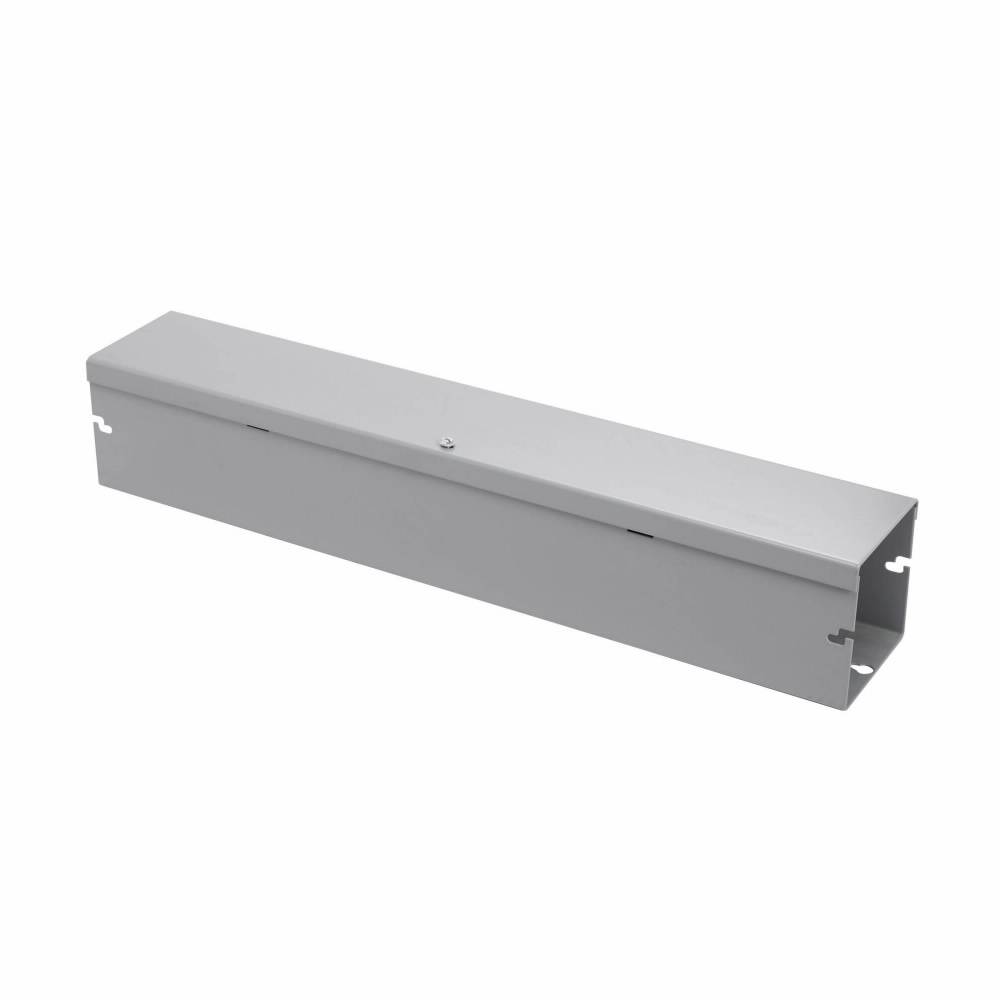

B-Line 8836 HSNK Quick-Connect Through Hole Wiring Trough, 36 in L x 8 in W x 8 in H, Hinged Cover, Steel

Short Description

8" x 8" x 36", ANSI 61 Gray Acrylic Electrocoated Over Phosphatized Surface, 14 Gauge Steel, NEMA 1/IP20, Quick-Connect Hinged Screw Cover, Lay-In Wireway

B-Line Wiring Trough, Quick-Connect Through Hole, Series: HSNK, 36 in Length, 8 in Width, 8 in Height, Hinged Cover, NEMA 1/IP30 NEMA Rating, Steel, Gray, Acrylic Electro Coated/Phosphate Undercoated
MFG #: 8836 HSNK

EECO #: BL8836HSNK

Brand: B-Line
UPC #: 782051479171
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Acrylic Electro Coated/Phosphate Undercoated
Length
36
UNSPSC
39131710
Approval
UL 870, CSA C22.2
Material
Steel
Knockouts
No
Application
Commercial, Institutional Buildings, Structures and Other Applications
Enclosure
NEMA 1, IP20
Type
Quick-Connect Through Hole
Width
8
Height
8
Series
HSNK
Warranty
Limited
Cover Type
Hinged
Features
  • Wireway body and cover are fabricated from code gauge steel
  • Wireway body has mounting holes on the back
  • Wireway exceeding 72 in L has two overlapping covers
  • Variety of fitting allow runs which can change direction, junction and terminate
  • Wireway connector (sold separately) have a gate feature which can swing completely open allowing for lay-in of wire and cable
  • Universal style connector are also available for adapting to other manufacturer's wireway
  • Except for wireway end, completely interchangeable with type 1 screw cover wireway and fitting through use of the adapter style connector HSCA
  • A2 discount schedule
  • HS1 subclass
  • Wash and phosphate undercoat
  • Without knockout
BLINESE01165_15_16_VII_X
IDW_DOCUMENT_ad2b1fb995d1989a1e2e001fac85aea6d2e67971854a304647b6262ef3e311e5
IDW_DOCUMENT_4b2b83252a253e7ca96c5e6c76d621cc41cd12506ce8e1fa4c6165e1e3e007dc
IDW_DOCUMENT_a712fd1e4deba90c59fb4efba9348b80d49b510c56fb8baccb3034e127045c40
Qty Unit price
Ea
1 $531.46

Slqt
1 $531.46

Stpk
1 $531.46

Unit
1 $531.46
