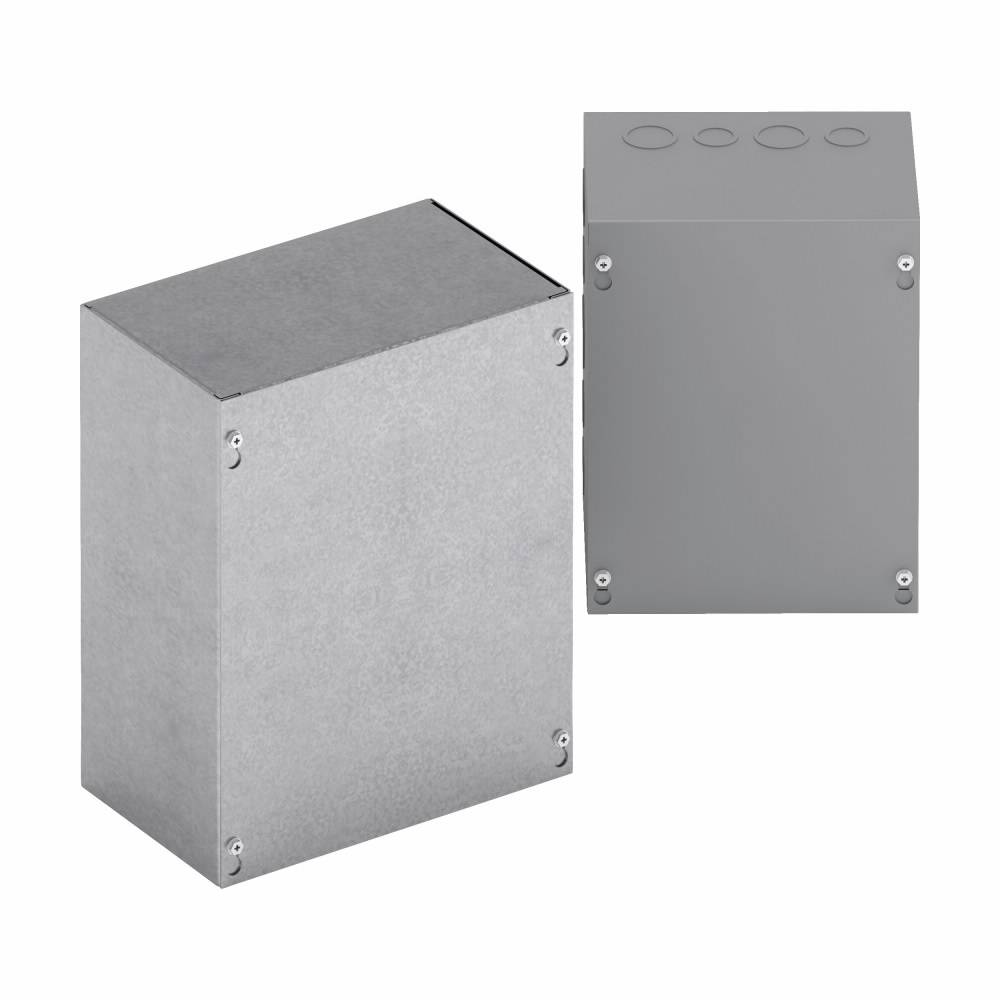

B-Line 666 SCGV Junction Box With Knockout, 6 in H x 6 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
B-Line 666 SCGV Junction Box With Knockout, 6 in H x 6 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
B-Line 666 SCGV Junction Box With Knockout, 6 in H x 6 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
B-Line 666 SCGV Junction Box With Knockout, 6 in H x 6 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
B-Line 666 SCGV Junction Box With Knockout, 6 in H x 6 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
B-Line 666 SCGV Junction Box With Knockout, 6 in H x 6 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
B-Line 666 SCGV Junction Box With Knockout, 6 in H x 6 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
B-Line 666 SCGV Junction Box With Knockout, 6 in H x 6 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
Share Share Print Print
Eaton

B-Line 666 SCGV Junction Box With Knockout, 6 in H x 6 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel

Short Description

6" x 6" x 6", ANSI 61 Gray, Galvanized, Acrylic Electrocoated Over Phosphatized Surface, 16 Gauge Steel, Screw-On, Wall Mount, Unflanged, Junction Box Enclosure

B-Line Junction Box, 6 in Height, 6 in Width, 6 in Depth, NEMA 1/IP30 NEMA Rating, Screw Cover, Surface Mounting, Steel, Galvanized, Gray
MFG #: 666 SCGV

EECO #: BL666SCGV

Brand: B-Line
UPC #: 782051001846
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Galvanized
UNSPSC
39121324
Approval
UL 50, CSA C22.2
Material
Steel
Application
For used as wiring boxes, junction and pull boxes and protects against contact with enclosed equipment, aviation, commercial, institutional buildings, structures - building automation and monitoring, aftermarket, critical power, lighting and lighting controls, power distribution and controls, safety and security systems, residential buildings and facilities
Nema Rating
NEMA 1, IP20
Knockout Size
(2) (1/2 Inch - 3/4 Inch) Conduit Concentric Knockout Top, (1) (3/4 Inch - 1 Inch) Conduit Concentric Knockout Top, (2) (1/2 Inch - 3/4 Inch) Conduit Concentric Knockout Bottom, (1) (3/4 Inch - 1 Inch) Conduit Concentric Knockout Bottom, (4) (1/2 Inch - 3/4 Inch) Conduit Concentric Knockout Side, (2) (3/4 Inch - 1 Inch) Conduit Concentric Knockout Side
Mounting Type
Surface
Material Specification
16 Gauge
Depth
6
Width
6
Height
6
Includes
Ground Screw, Ground Lug Kit and Touch-Up Paint
Warranty
Limited
Cover Type
Screw
Knockout Location
(3) Top, (3) Bottom, (6) Sides
Features
  • Enclosure and cover are fabricated from code gauge steel or galvanized steel
  • Enclosure body has mounting holes on the back
  • Cover is secured to the body with plated hex head combo screws
  • Keyhole slots provided in the cover allow easy access to the inside without removing the screws
  • Hole provision for optional ground lug kit
BLINESE01165_50_52_VII_X
IDW_DOCUMENT_ad2b1fb995d1989a1e2e001fac85aea6d2e67971854a304647b6262ef3e311e5
IDW_DOCUMENT_4660fb78cc75d4836cac7c5e004ad0dc21a2ca2f0d785ac7be27f1f42d7ece09
IDW_DOCUMENT_9e5f8e00c98c83d501c00e0c74616cca9463f865b6c60d102e1c52e4bebfe142
Qty Unit price
Ea
1 $71.51

Slqt
1 $71.51

Stpk
1 $71.51

Unit
1 $71.51
