Eaton

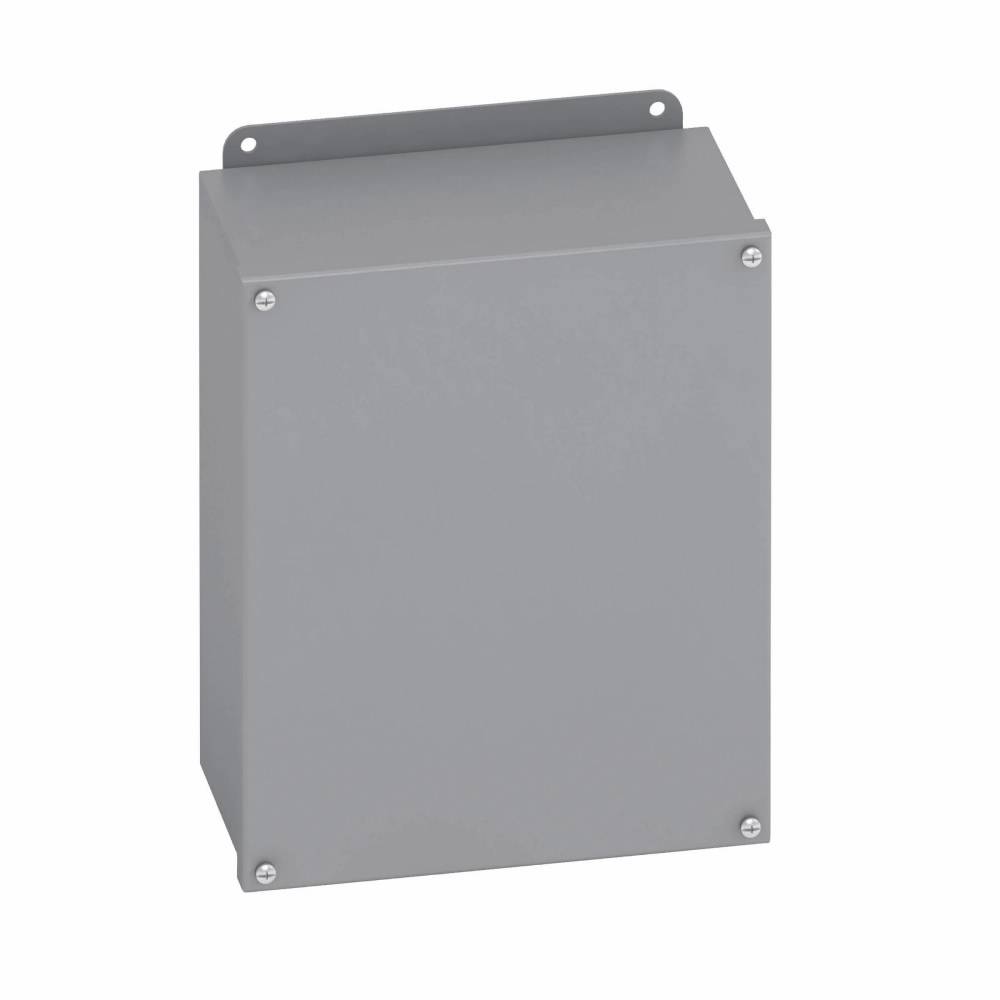

B-Line 664-12SC JIC Enclosure, 6 in W x 4 in D x 6 in H, NEMA 12/IP65 NEMA Rating, Carbon Steel

Short Description

6" x 6" x 4", NEMA 12/IP54, ANSI 61 Gray Polyester Powder Coated Over Phosphatized Surface, 16 Gauge Steel, Gasketed, Screw-On, 1-Door, Panel Enclosure

B-Line JIC Enclosure, 6 in Width, 4 in Depth, 6 in Height, NEMA 12/IP65 NEMA Rating, Screw Cover, 4.87 in W x 4.87 in H Panel, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated/Phosphate Undercoat, Gray

MFG #: 664-12SC

EECO #: BL66412SC

Brand: B-Line
UPC #: 782051320053
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Coated/Phosphate Undercoat
UNSPSC
39121324
Approval
UL 508, CSA C22.2, JIC EGP-1-1967
Material
Carbon Steel
Application
Commercial, Institutional Buildings, Structures - Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Industrial Facilities and Factories Facility, Automation and Monitoring, Critical Power, Safety and Security Systems, Manufacturing Process Electrification and Control, Utility - Substations, Transmission and Distribution, Electrical Control and Instrument Applications
Service Type
Indoor
Mounting Type
External Feet/Wall
Mounting
External Feet, Wall Mount
Material Specification
16 Gauge
Depth
4
Height
6
Warranty
Limited
Cover Type
Screw
Panel Size
4.87 in W x 4.87 in H
Features
  • Enclosure and cover are fabricated from 16 ga steel
  • All continuous welded seams are finished smooth
  • Cover is attached with captive screws which thread into sealed well nuts
  • Cover has a fixed oil-resistant gasket
  • Ground stud provided on cover
  • External mounting feet are provided for secure wall mounting
  • Protects against circulating dust, falling dirt and dripping non-corrosive liquids
  • Captive plated screws, panel mount provisions
