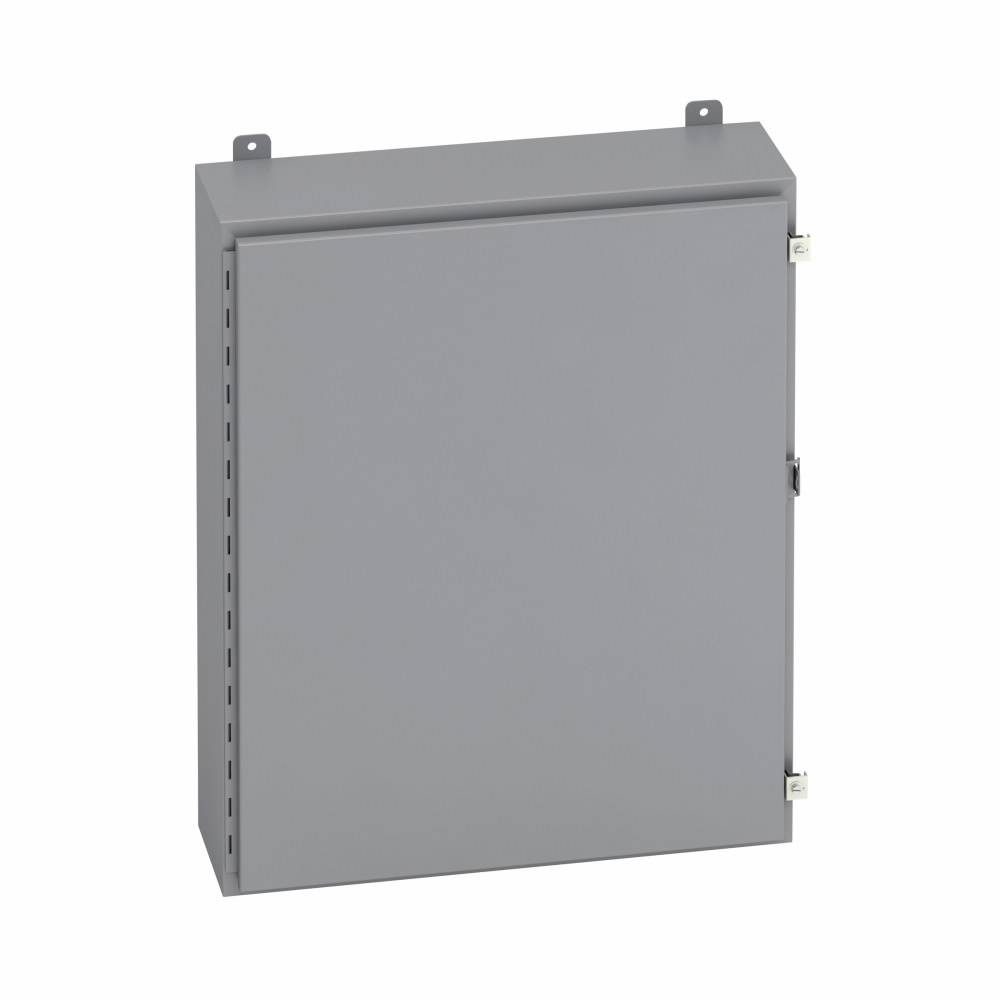

B-Line 24128-12 1-Door Panel Enclosure, 12 in W x 8 in D x 24 in H, NEMA 12, 16 ga Steel
Share Share Print Print
Eaton

B-Line 24128-12 1-Door Panel Enclosure, 12 in W x 8 in D x 24 in H, NEMA 12, 16 ga Steel

Short Description

Eaton's B-Line series JIC wall mount, ground mount and terminal Type 12 panel enclosures are used to house electrical controls and instruments while helping protect them against circulating dust, falling dirt and dripping non-corrosive liquids.

B-Line Panel Enclosure, 1-Door, 12 in Width, 8 in Depth, 24 in Height, NEMA 12, Continuous Hinged Cover, 9 in W x 21 in H Panel, Lock: Padlock Hasp, Wall Mount, 16 ga Steel, Polyester Powder Coated, Gray
MFG #: 24128-12

EECO #: BL2412812

Brand: B-Line
UPC #: 782051801309
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Coated
UNSPSC
39121324
Material
16 ga Steel
Application
Commercial/Institutional Buildings/Structures - Aftermarket, Safety and Security Systems, Lighting and Lighting Controls, Critical Power, Building Automation and Monitoring, Power Distribution and Controls, IT and Datacom, IT Space - CI and Hyper Converged, Utility - Substations, Utility Transmission and Distribution, Generation - Renewable Energy, Alternative Energy
Mounting Type
Wall
Type
1-Door
Depth
8
Width
12
Height
24
Warranty
Limited
Cover Type
Continuous Hinged
Panel Size
9 in W x 21 in H
Features
  • Enclosure and door are fabricated from 16 ga steel
  • All continuous welded seams are finished smooth
  • Doors are secured to the body with a heavy duty continuous hinge on one side and easy-to-release door clamps mounted to the opposite side
  • Each door has a padlock hasp with sealing hole provision
  • Print pocket provided
  • Door has a seamless poured in place gasket
  • Ground stud provided on door and body
  • Formed lip around enclosure openings to diverts liquids and contaminants
  • External mounting feet are provided for secure wall mounting
  • Plated door clamps
B_Line_1086_SDFQRCC_Brochure
IDW_DOCUMENT_2b68ee61768b1cd0b1f69dee8baf5590114a0fc395de61f2f2fc04bb65dc13fd
IDW_DOCUMENT_ad2b1fb995d1989a1e2e001fac85aea6d2e67971854a304647b6262ef3e311e5
242410_RHCF_Catalog
Qty Unit price
Ea
1 $1,275.63
