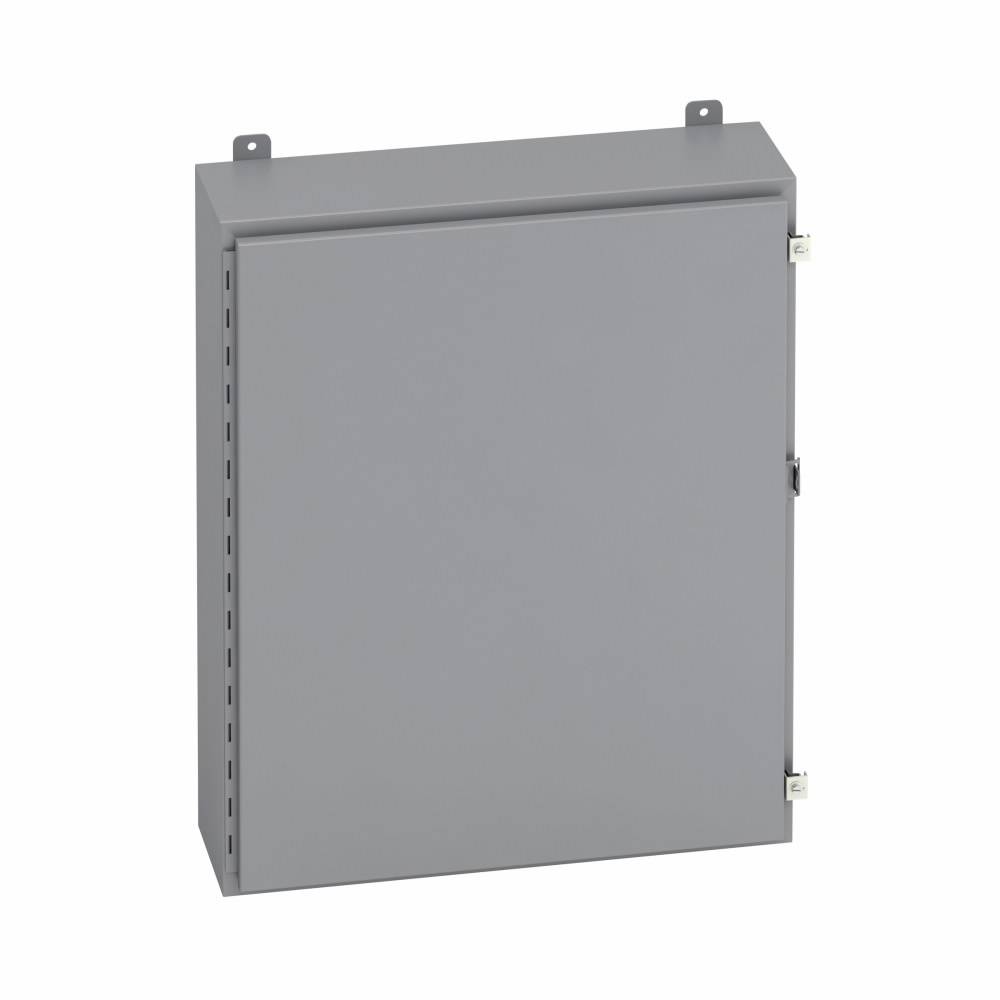

B-Line 20206-12 1-Door Panel Enclosure, 20 in W x 6 in D x 20 in H, NEMA 12, 16 ga Steel

Short Description

20" x 20" x 6", NEMA 12/IP54, ANSI 61 Gray Polyester Powder Coated Over Phosphatized Surface, 16 Gauge Steel, Heavy Duty Continuous Hinge, Clamp, Gasketed, Padlockable Hasp, 1-Door, Panel Enclosure

B-Line Panel Enclosure, 1-Door, 20 in Width, 6 in Depth, 20 in Height, NEMA 12, Continuous Hinged Cover, 17 in W x 17 in H Panel, Lock: Padlock Hasp, Wall Mount, 16 ga Steel, Polyester Powder Coated, Gray

MFG #: 20206-12

EECO #: BL2020612

Brand: B-Line
UPC #: 782051800203
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Coated
UNSPSC
39121324
Approval
UL 508, CSA-C22.2
Material
16 ga Steel
Application
Commercial/Institutional Buildings/Structures - Aftermarket, Safety and Security Systems, Lighting and Lighting Controls, Critical Power, Building Automation and Monitoring, Power Distribution and Controls, IT and Datacom, IT Space - CI and Hyper Converged, Utility - Substations, Utility Transmission and Distribution, Generation - Renewable Energy, Alternative Energy
Service Type
Indoor
Mounting Type
Wall
Mounting
External Feet, Wall Mount
Material Specification
16 Gauge
Depth
6
Height
20
Warranty
30 days
Cover Type
Continuous Hinged
Panel Size
17 in W x 17 in H
Features
  • Enclosure and door are fabricated from 16 ga steel
  • All continuous welded seams are finished smooth
  • Doors are secured to the body with a heavy duty continuous hinge on one side and easy-to-release door clamps mounted to the opposite side
  • Each door has a padlock hasp with sealing hole provision
  • Print pocket provided
  • Door has a seamless poured in place gasket
  • Ground stud provided on door and body
  • Formed lip around enclosure openings to diverts liquids and contaminants
  • External mounting feet are provided for secure wall mounting
  • Plated door clamps
BLINESE01165_104_106_VII_X
Qty Unit price
Ea
1 $1,334.62

Slqt
1 $1,334.62

Stpk
1 $1,334.62

Unit
1 $1,334.62
