Eaton

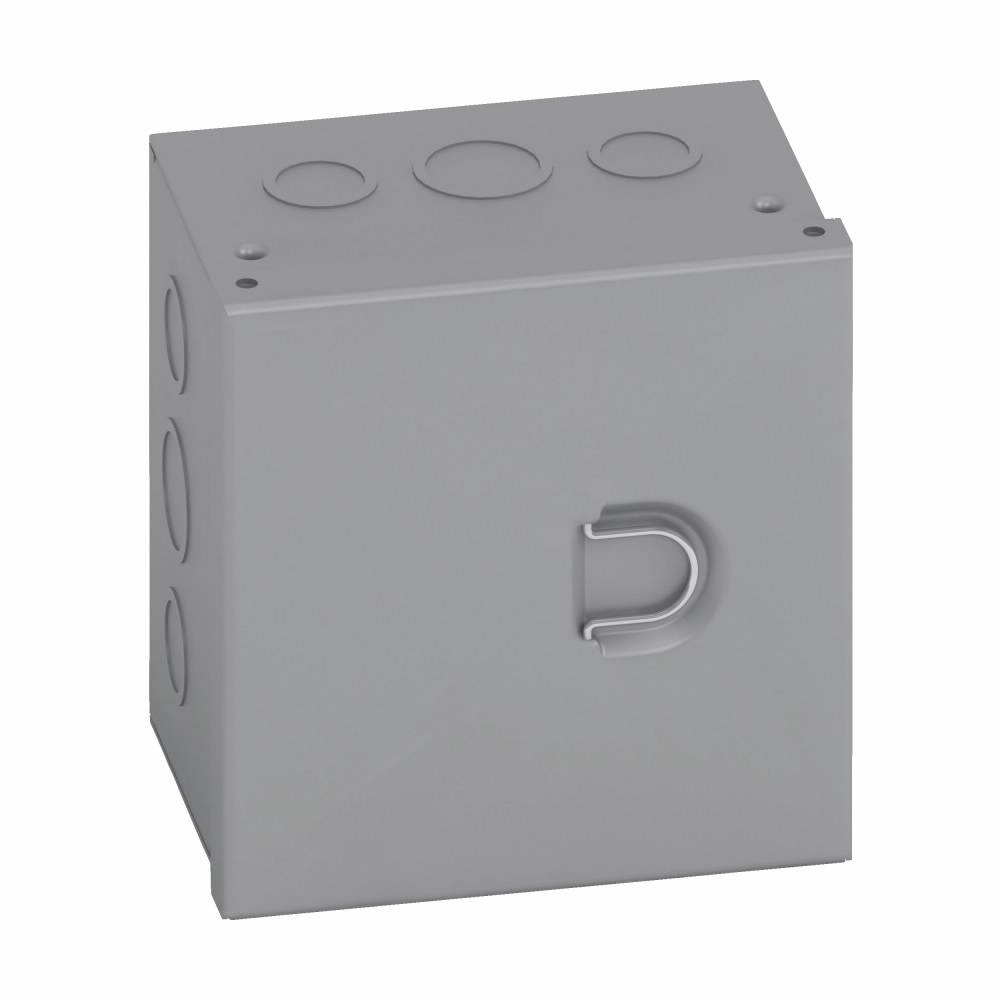

B-Line 12126 HC Junction Box With Knockout, 12 in H x 12 in W x 6 in D, Hinged Cover, NEMA 1/IP30 NEMA Rating, Carbon steel

Short Description

12" x 12" x 6", ANSI 61 Gray, Acrylic Electrocoated Over Phosphatized Surface, 16 Gauge Steel, T-Slot Hinged, Friction Dimple Catch, Wall Mount, Unflanged, Junction Box Enclosure

B-Line Junction Box, 12 in Height, 12 in Width, 6 in Depth, NEMA 1/IP30 NEMA Rating, Hinged Cover, Surface Mounting, Carbon steel, Acrylic Electro Coated, Gray
MFG #: 12126 HC

EECO #: BL12126HC

Brand: B-Line
UPC #: 782051323054
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Acrylic Electro Coated
UNSPSC
39121324
Approval
UL 50, CSA C22.2
Material
Carbon steel
Application
For used as wiring boxes, junction and pull boxes and protects against contact with enclosed equipment, aviation, commercial, institutional buildings, structures - building automation and monitoring, aftermarket, critical power, lighting and lighting controls, power distribution and controls, safety and security systems, residential buildings and facilities
Nema Rating
NEMA 1, IP20
Knockout Size
(2) (1/2 Inch - 3/4 Inch) Conduit Concentric Knockout Top, (2) (3/4 Inch - 1 Inch) Conduit Concentric Knockout Top, (1) (1 Inch - 1-1/4 Inch) Conduit Concentric Knockout Top, (2) (1/2 Inch - 3/4 Inch) Conduit Concentric Knockout Bottom, (2) 3/4 Inch
Mounting Type
Surface
Material Specification
16 Gauge
Depth
6
Width
12
Height
12
Warranty
Limited
Cover Type
Hinged
Knockout Location
(5) Top, (5) Bottom, (10) Sides
Features
  • Enclosure and cover are fabricated from 16 ga steel
  • Enclosure body has mounting holes on the back
  • Removable cover is secured to the body with T-slot hinges on one side and a friction dimple catch on the opposite side
  • Cover is furnished with a recessed pull ring for opening convenience
  • Hole provision for optional ground lug kit
  • Wash and phosphate undercoat
