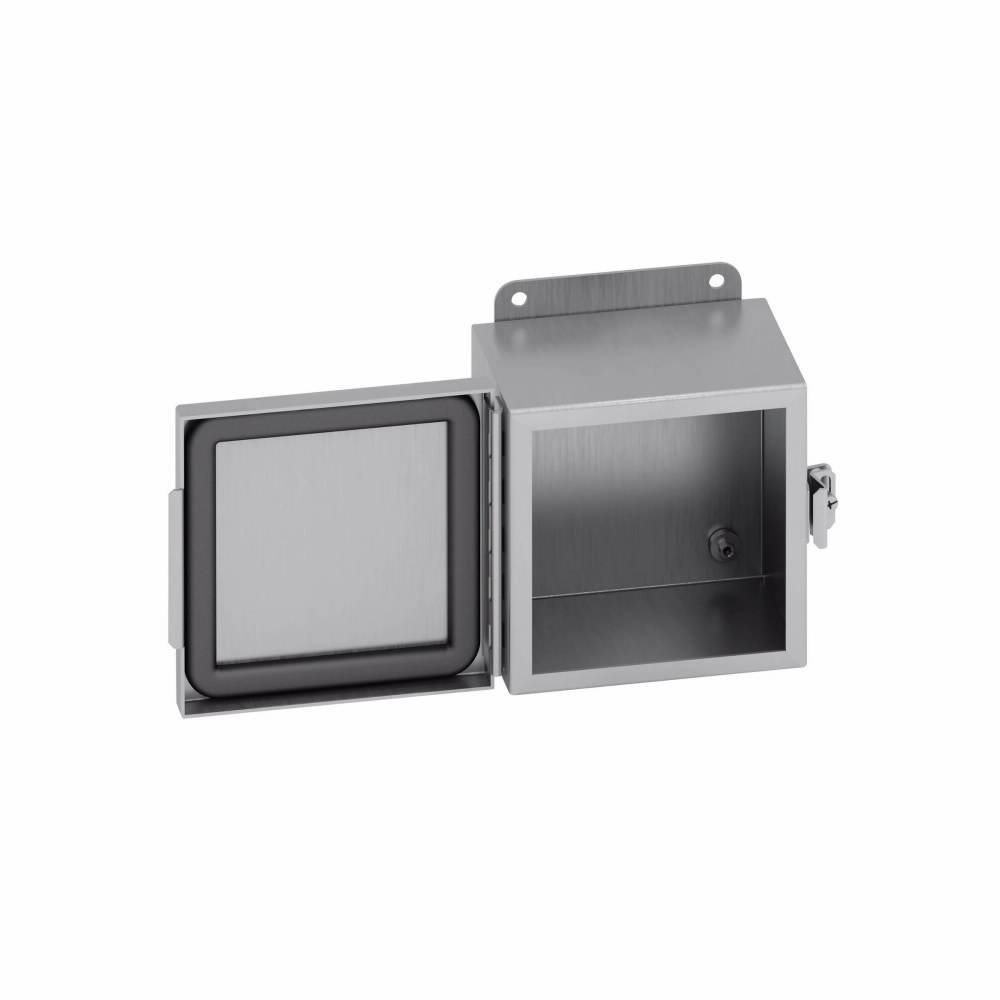

B-Line 12106-4XSCHC JIC Panel Enclosure, 10 in W x 6 in D x 12 in H, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel

Short Description

12" x 10" x 6", NEMA 4X/IP66, #4 Smooth Brushed Body/Cover, 16 Gauge 304 Stainless Steel, Continuous Hinge with Pin, Gasketed, Screw Clamp, 1-Door, Panel Enclosure

B-Line JIC Panel Enclosure, 10 in Width, 6 in Depth, 12 in Height, NEMA 4X/IP66 NEMA Rating, Continuous Hinged Cover, 8.87 in W x 10.87 in H Panel, Lock: Screw Clamp, External Feet/Wall Mounting, 304 Stainless Steel, Smooth Brushed

MFG #: 12106-4XSCHC

EECO #: BL121064XSCHC

Brand: B-Line
UPC #: 782051701982
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Smooth Brushed
UNSPSC
39121324
Approval
UL 508, CSA C22.2, JIC EGP-1-1967
Material
304 Stainless Steel
Application
Industrial Facilities and Factories - Manufacturing Process Electrification and Control, Safety and Security Systems, Power Distribution and Control, Automation and Monitoring, Lighting and Lighting Controls, Critical Power, Commercial/Institutional Buildings/Structures - Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Utility - Substations, Utility Transmission and Distribution
Service Type
Indoor/Outdoor
Mounting Type
External Feet/Wall
Mounting
External Feet, Wall Mount
Material Specification
16 Gauge
Depth
6
Height
12
Warranty
Limited
Cover Type
Continuous Hinged
Panel Size
8.87 in W x 10.87 in H
Features
  • Enclosure and cover are fabricated from 16 ga, type 304 or type 316L stainless steel
  • All continuous welded seams are finished smooth
  • Cover is secured to the body with an aluminum continuous hinge and pin on one side and easy-to-operate stainless steel screw clamps mounted to the opposite side
  • Cover has a seamless poured in place gasket
  • Ground stud provided on cover
  • External mounting feet are provided for secure wall mounting
  • Cover and sides of body have a smooth #4 brushed finish
  • Stainless steel door clamps
