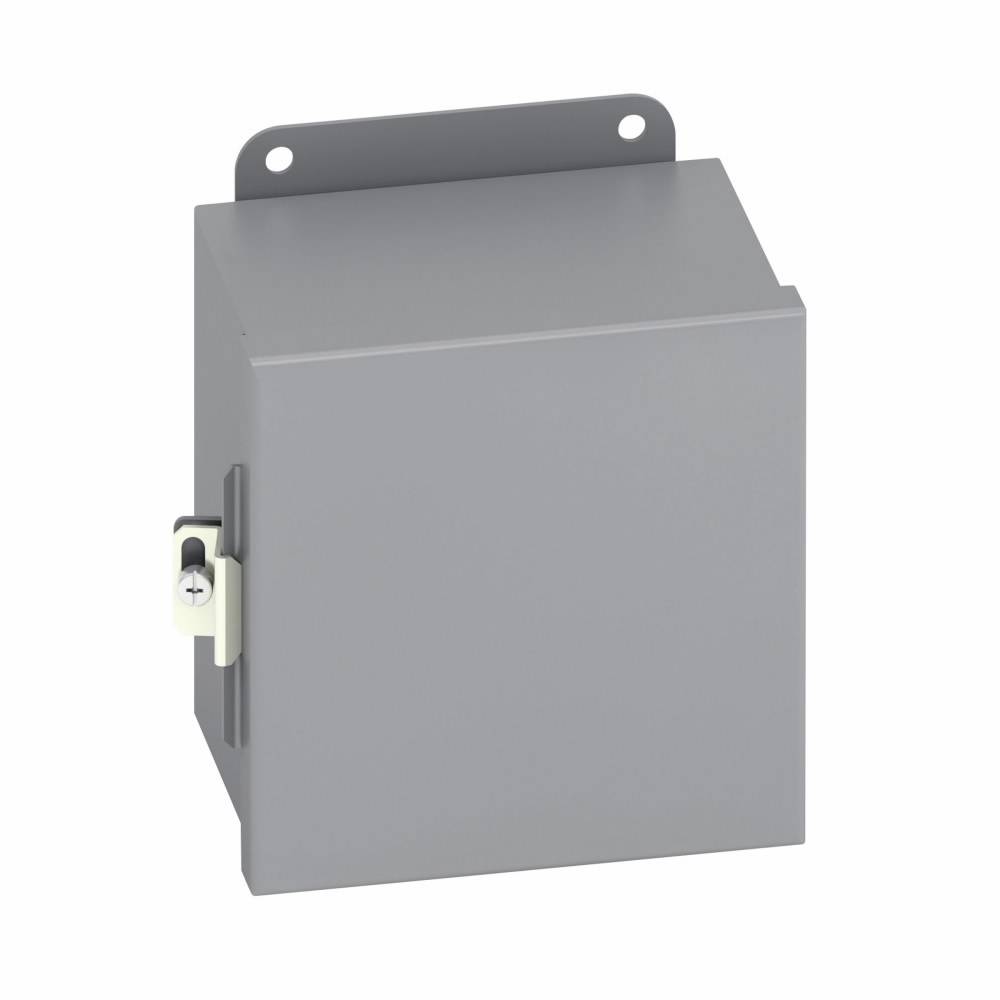

B-Line 1084-12CHC 1-Door JIC Panel Enclosure, 8 in W x 4 in D x 10 in H, NEMA 12/IP65 NEMA Rating, Carbon Steel

Short Description

10" x 8" x 4", NEMA 12/IP54, ANSI 61 Gray Polyester Powder Coated Over Phosphatized Surface, 16 Gauge Steel, Continuous Hinge, Gasketed, Screw Clamp, 1-Door, Panel Enclosure

B-Line JIC Panel Enclosure, 1-Door, 8 in Width, 4 in Depth, 10 in Height, NEMA 12/IP65 NEMA Rating, Continuous Piano Hinged Cover, 8.87 in W x 8.87 in H Panel, Lock: Screw Clamp, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated/Phosphate Undercoat, Gray

MFG #: 1084-12CHC

EECO #: BL108412CHC

Brand: B-Line
UPC #: 782051750607
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Coated/Phosphate Undercoat
UNSPSC
39121324
Approval
UL 508, CSA C22.2, JIC EGP-1-1967
Material
Carbon Steel
Application
Commercial, Institutional Buildings, Structures - Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Industrial Facilities and Factories Facility, Automation and Monitoring, Critical Power, Safety and Security Systems, Manufacturing Process Electrification and Control, Utility - Substations, Transmission and Distribution Applications
Service Type
Indoor
Mounting Type
External Feet/Wall
Mounting
External Feet, Wall Mount
Material Specification
16 Gauge
Depth
4
Height
10
Warranty
30 days
Cover Type
Continuous Piano Hinged
Panel Size
8.87 in W x 8.87 in H
Features
  • Enclosure and cover are fabricated from 16 ga steel
  • All continuous welded seams are finished smooth
  • Cover is secured to the body with a continuous hinge on one side and easy to operate screw clamps mounted to the opposite side
  • Cover has a seamless poured in place gasket
  • Ground stud provided on cover
  • External mounting feet are provided for secure wall mounting
  • Protects against circulating dust, falling dirt and dripping non-corrosive liquids
  • Hardware and clamps are zinc plated
  • Continuous piano hinge, panel mount, plated door clamps
BLINESE01165_92_93_VII_X
Qty Unit price
Ea
1 $290.13

Slqt
1 $290.13

Stpk
1 $290.13

Unit
1 $290.13
