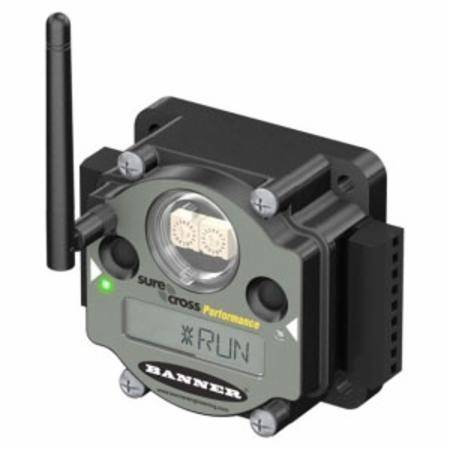

10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18800 Sure Cross® Radio Frequency Network Node, Polycarbonate, External Terminal, 2 Mile
10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18800 Sure Cross® Radio Frequency Network Node, Polycarbonate, External Terminal, 2 Mile
10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18800 Sure Cross® Radio Frequency Network Node, Polycarbonate, External Terminal, 2 Mile
10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18800 Sure Cross® Radio Frequency Network Node, Polycarbonate, External Terminal, 2 Mile
Share Share Print Print
Banner Engineering

10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18800 Sure Cross® Radio Frequency Network Node, Polycarbonate, External Terminal, 2 Mile

Short Description

10 to 30 VDC, 2.4 GHz, 65 mW, 2 Mile, Polycarbonate, External Terminal, Radio Frequency Network Node

Radio Frequency Network Node; Wattage 65 Milliwatt; Range 2 Mile; Material Polycarbonate; Frequencies 2.4 Giga Hertz; Battery Operated Yes; Minimum Separation Distance 0.3 Meter; Wiring Access External Terminal; Voltage Rating 10 to 30 Volt DC; Wiring Access External Terminal; Inputs/Outputs FlexPower, Thermocouple; Display Type Six Character LCD; Spread Spectrum Technology Frequency Hopping Spread Spectrum; Enclosure Rating NEMA 6, IP67; Temperature Rating -40 to 185 Deg F; Relative Humidity 95 Percent; Approval UL (Canada and US), CSA (Canada and US), CE, FCC; Applicable Standard IEC 68-2-6/68-2-27

MFG #: 18800

EECO #: BFDX80N2X2SP3C

Brand: Banner Engineering
Attributes
Features
Documents
Product Information
Attributes
Range
2 Mile
UNSPSC
43222600
Material
Polycarbonate
Frequencies
2.4 Giga Hertz
Wattage
65 Milliwatt
Features
  • Wireless Industrial I/O Device with up to Two Selectable Discrete Inputs, One NMOS Discrete Output and Four Thermocouple Inputs
  • One Thermistor Input Used for Integrated Cold Junction Compensation
  • DIP Switches for User Configuration
  • Frequency Hopping Spread Spectrum (FHSS) Technology Ensures Reliable Data Delivery within the Unlicensed Industrial, Scientific and Medical (ISM) Band
  • Transceivers Provide Bidirectional Communication between the Gateway and Node, Including Fully Acknowledged Data Transmission
  • Lost RF Links are Detected and Relevant Outputs Set to User-Defined Conditions
BANENG_18786_CAD
BANENGE01835_50_51
BANENGE03732_1_9
BANENGE03897_1_11
BANENGINST00016
