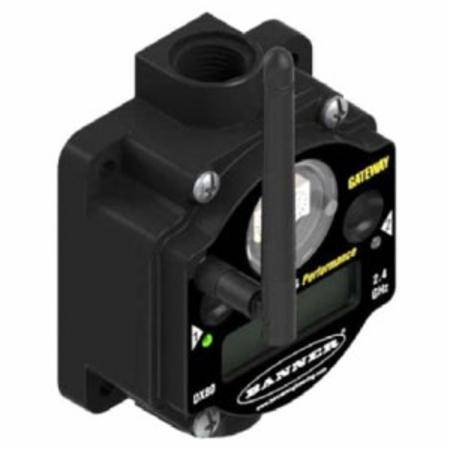

10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 800010 Sure Cross® Radio Frequency Network Node, Polycarbonate, Integrated Battery, 2 Mile
Share Share Print Print
Banner Engineering

10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 800010 Sure Cross® Radio Frequency Network Node, Polycarbonate, Integrated Battery, 2 Mile

Short Description

10 to 30 VDC, 2.4 GHz, 65 mW, 2 Mile, Polycarbonate, Integrated Battery, Radio Frequency Network Node

Radio Frequency Network Node; Wattage 65 Milliwatt; Range 2 Mile; Material Polycarbonate; Frequencies 2.4 Giga Hertz; Minimum Separation Distance 0.3 Meter; Wiring Access (4) PG-7, (1) 1/2 Inch Threaded, (1) 5-Pin Threaded M12/Euro-Style Male Quick Disconnect; Voltage Rating 10 to 30 Volt DC; Housing Style Integrated Battery; Inputs/Outputs Serial Interface; Display Type Six Character LCD; Spread Spectrum Technology Frequency Hopping Spread Spectrum; Enclosure Rating NEMA 6, IP67; Temperature Rating -40 to 185 Deg F; Relative Humidity 95 Percent; Excludes Internal Battery; Approval UL (Canada and US), CSA (Canada and US), CE, FCC; Applicable Standard IEC 68-2-6/68-2-27

MFG #: 800010

EECO #: BFDX80N2X1SP6NB

Brand: Banner Engineering
Attributes
Features
Documents
Product Information
Attributes
Range
2 Mile
UNSPSC
43222600
Material
Polycarbonate
Frequencies
2.4 Giga Hertz
Wattage
65 Milliwatt
Features
  • Enhanced Nodes Offer Increased Range in the 900 MHz Frequency Band
  • High Density I/O Capacity Provides up to 12 Discrete Inputs or Outputs or a Mix of Discrete and Analog I/O
  • Universal Analog Inputs Allow Current or Voltage to be Selected in the Field
