10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 87097 Sensor Network I/O Data Radio, Polycarbonate,, 2 Mile
Share Share Print Print
Banner Engineering

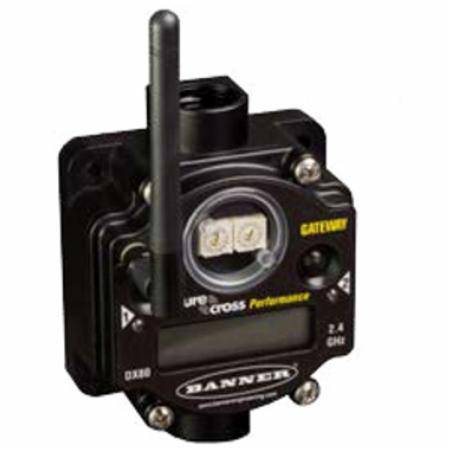

10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 87097 Sensor Network I/O Data Radio, Polycarbonate,, 2 Mile

Short Description

10 to 30 VDC at 2.4 Giga Hertz, 65 mW, 0 to 20 mA, Polycarbonate, 2 Mile, Sensor Network I/O Data Radio

Sensor Network I/O Data Radio; Wattage 65 Milliwatt; Range 2 Mile; Material Polycarbonate; Frequencies 2.4 Giga Hertz; Battery Operated Yes; Minimum Separation Distance 4.57 Meter; Voltage Rating 10 to 30 Volt DC; Output Current Rating 0 to 20 Milliamp; Wiring Access (2) 1/2 Inch Male Threaded; Temperature Rating -40 to 185 Deg F; Relative Humidity 95 Percent; Display Type Six Character LCD; Communication Protocol Type Modbus RTU; Approval CE; Applicable Standard IEC 68-2-6/68-2-27

MFG #: 87097

EECO #: BFDX80G2M6SPM2

Brand: Banner Engineering
Attributes
Features
Documents
Product Information
Attributes
Range
2 Mile
UNSPSC
32151703
Material
Polycarbonate
Frequencies
2.4 Giga Hertz
Wattage
65 Milliwatt
Features
  • The Wireless PM2 Models have Four Selectable Discrete Inputs, Four Sourcing Discrete Outputs and Two Analog Inputs and Outputs in Both the Gateway and Node
  • The PM2 Gateway is Pre-Mapped to Support up to Two Node
BANENGE00600_32_33
BANENGE00724_1_2
BANENGE01544_1_10
BANENGINST00016
Qty Unit price
Ea
1 $326.30

Slqt
1 $326.30

Stpk
1 $326.30

Unit
1 $326.30
