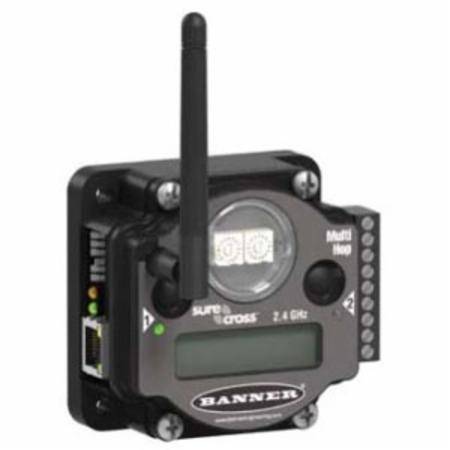

10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18386 Sure Cross® Wireless Ethernet Data Radio, Polycarbonate, External Terminal, 2 Mile
10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18386 Sure Cross® Wireless Ethernet Data Radio, Polycarbonate, External Terminal, 2 Mile
10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18386 Sure Cross® Wireless Ethernet Data Radio, Polycarbonate, External Terminal, 2 Mile
10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18386 Sure Cross® Wireless Ethernet Data Radio, Polycarbonate, External Terminal, 2 Mile
Share Share Print Print
Banner Engineering

10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 18386 Sure Cross® Wireless Ethernet Data Radio, Polycarbonate, External Terminal, 2 Mile

Short Description

10 to 30 VDC, 2.4 GHz, 65 mW, 2 Mile, Polycarbonate, External Terminal, Wireless Ethernet Data Radio

Wireless Ethernet Data Radio; Wattage 65 Milliwatt; Range 2 Mile; Material Polycarbonate; Frequencies 2.4 Giga Hertz; Battery Operated Yes; Minimum Separation Distance 0.3 Meter; Wiring Access External Terminal; Voltage Rating 10 to 30 Volt DC; Wiring Access External Terminal; Display Type Six Character LCD; Spread Spectrum Technology Frequency Hopping Spread Spectrum; Enclosure Rating NEMA 1, IP20; Temperature Rating -40 to 185 Deg F; Relative Humidity 95 Percent; Approval FCC; Applicable Standard EN 300, ETSI/EN

MFG #: 18386

EECO #: BFDX80ER2MH

Brand: Banner Engineering
Attributes
Features
Documents
Product Information
Attributes
Range
2 Mile
UNSPSC
43221721
Material
Polycarbonate
Frequencies
2.4 Giga Hertz
Wattage
65 Milliwatt
Features
  • Simple, Non-Configurable Ethernet Switch Operation
  • No IP Address Configuration is Required
  • Self-Healing, Auto-Routing RF Network with Multiple Hops Extends the Network's Range
  • Network Topology is Selectable between Star or Multihop Topology
  • AES (Advanced Encryption Standard) Using a 256-Bit Cryptographic Key
  • Built-In Site Survey Mode Enables Rapid Assessment of a Location's RF Transmission Properties
  • FHSS Radios Operate and Synchronize Automatically
