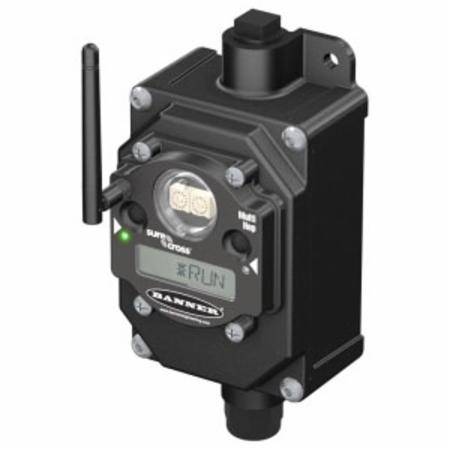

10 to 30 VDC, 900 Mega Hertz, 1 W, Banner Engineering Corp. 18138 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, Integrated Battery, 6 Mile

Short Description

10 to 30 VDC, 900 Mega Hertz, 1 W, 6 Mile, Polycarbonate, Integrated Battery, Multi-Hop Modbus Radio

Multi-Hop Modbus Radio; Wattage 1 Watt; Range 6 Mile; Material Polycarbonate; Frequencies 900 Mega Hertz; Battery Operated Yes; Minimum Separation Distance 4.57 Meter; Wiring Access (2) 1/2 Inch Threaded; Voltage Rating 10 to 30 Volt DC; Housing Style Integrated Battery; Inputs/Outputs FlexPower, Thermocouple; Display Type Six Character LCD; Spread Spectrum Technology Frequency Hopping Spread Spectrum; Communication Hardware Interface 2-Wire, Half Duplex RS-485; Data Format Type 8 Bit Data, No Polarity, 1-Stop Bit; Packet Size 175 Bytes; Enclosure Rating NEMA 4X, IP65; Temperature Rating -40 to 149 Deg F; Relative Humidity 95 Percent; Approval UL (Canada and US), CUL, CSA (Canada and US), CE, ATEX, FCC; Applicable Standard IEC 68-2-6/68-2-27

MFG #: 18138

EECO #: BFDX80DR9MH3E

Brand: Banner Engineering
Attributes
Features
Documents
Product Information
Attributes
Range
6 Mile
UNSPSC
43221721
Material
Polycarbonate
Frequencies
900 Mega Hertz
Wattage
1 Watt
Features
  • Wireless Industrial I/O Device with Four Thermocouple Inputs, Two NPN Discrete Inputs, One Thermistor Input and Two NMOS Discrete Outputs
  • Self-Healing, Auto-Routing RF Network with Multiple Hops Extends the Network's Range
  • Serial and I/O Communication on a Modbus Platform
  • Message Routing Improves Link Performance
  • DIP Switches Select Operational Modes: Master, Repeater or Slave
  • Built-In Site Survey Mode Enables Rapid Assessment of a Location's RF Transmission Properties
  • Frequency Hopping Spread Spectrum (FHSS) Technology Ensures Reliable Data Delivery within the Unlicensed Industrial, Scientific and Medical (ISM) Band
