10 to 30 VDC, 900 Mega Hertz, 1 W, Banner Engineering Corp. 16763 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, External Terminal, 6 Mile
10 to 30 VDC, 900 Mega Hertz, 1 W, Banner Engineering Corp. 16763 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, External Terminal, 6 Mile
10 to 30 VDC, 900 Mega Hertz, 1 W, Banner Engineering Corp. 16763 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, External Terminal, 6 Mile
10 to 30 VDC, 900 Mega Hertz, 1 W, Banner Engineering Corp. 16763 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, External Terminal, 6 Mile
Share Share Print Print
Banner Engineering

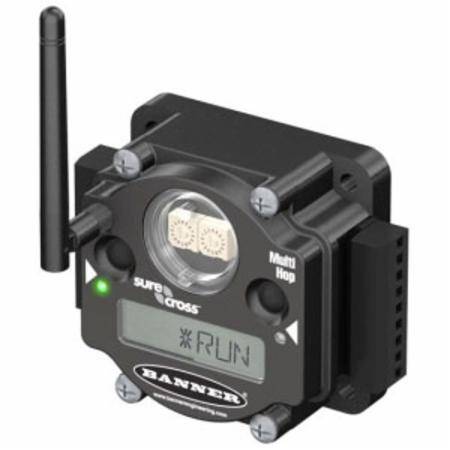

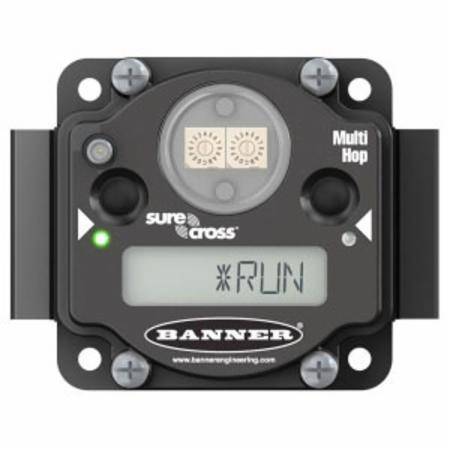

10 to 30 VDC, 900 Mega Hertz, 1 W, Banner Engineering Corp. 16763 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, External Terminal, 6 Mile

Short Description

10 to 30 VDC, 900 Mega Hertz, 1 W, 6 Mile, Polycarbonate, External Terminal, Multi-Hop Modbus Radio

Multi-Hop Modbus Radio; Wattage 1 Watt; Range 6 Mile; Material Polycarbonate; Frequencies 900 Mega Hertz; Battery Operated Yes; Minimum Separation Distance 4.57 Meter; Wiring Access External Terminal; Voltage Rating 10 to 30 Volt DC; Wiring Access External Terminal; Inputs/Outputs (4) Discrete, (2) Analog; Display Type Six Character LCD; Spread Spectrum Technology Frequency Hopping Spread Spectrum; Communication Hardware Interface 2-Wire, Half Duplex RS-485; Data Format Type 8 Bit Data, No Polarity, 1-Stop Bit; Packet Size 175 Bytes; Enclosure Rating NEMA 1, IP20; Temperature Rating -40 to 185 Deg F; Relative Humidity 95 Percent; Approval UL (Canada and US), CUL, CSA (Canada and US), CE, ATEX, FCC; Applicable Standard IEC 68-2-6/68-2-27

MFG #: 16763

EECO #: BFDX80DR9MH2C

Brand: Banner Engineering
Attributes
Features
Documents
Product Information
Attributes
Range
6 Mile
UNSPSC
43221721
Material
Polycarbonate
Frequencies
900 Mega Hertz
Wattage
1 Watt
Features
  • Wireless Industrial I/O Device with Four PNP Discrete Inputs, Four PNP Discrete Outputs, Two 0 to 20 mA Analog Inputs and Two 0 to 20 mA Analog Outputs
  • Self-Healing, Auto-Routing RF Network with Multiple Hops Extends the Network's Range
  • Serial and I/O Communication on a Modbus Platform
  • Message Routing Improves Link Performance
  • DIP Switches Select Operational Modes: Master, Repeater or Slave
  • Built-In Site Survey Mode Enables Rapid Assessment of a Location's RF Transmission Properties
  • FHSS Radios Operate and Synchronize Automatically
