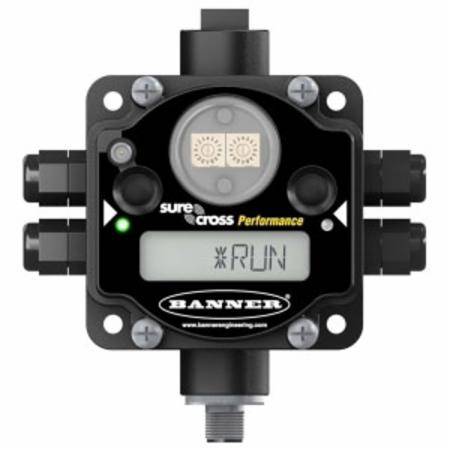

10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 12199 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, Enclosed Terminal, 2 Mile
10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 12199 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, Enclosed Terminal, 2 Mile
10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 12199 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, Enclosed Terminal, 2 Mile
10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 12199 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, Enclosed Terminal, 2 Mile
Share Share Print Print
Banner Engineering

10 to 30 VDC, 2.4 GHz, 65 mW, Banner Engineering Corp. 12199 Sure Cross® Multi-Hop Modbus Radio, Polycarbonate, Enclosed Terminal, 2 Mile

Short Description

10 to 30 VDC, 2.4 GHz, 65 mW, 2 Mile, Polycarbonate, Enclosed Terminal, Multi-Hop Modbus Radio

Multi-Hop Modbus Radio; Wattage 65 Milliwatt; Range 2 Mile; Material Polycarbonate; Frequencies 2.4 Giga Hertz; Battery Operated Yes; Minimum Separation Distance 0.3 Meter; Wiring Access (4) PG-7, (1) 1/2 Inch Threaded, (1) 5-Pin Threaded M12/Euro-Style Male Quick Disconnect; Voltage Rating 10 to 30 Volt DC; Housing Style Enclosed Terminal; Inputs FlexPower, (4) Discrete, (2) Analog, (1) Thermistor, (1) Counter; Outputs (2) Discrete; Display Type Six Character LCD; Spread Spectrum Technology Frequency Hopping Spread Spectrum; Communication Hardware Interface 2-Wire, Half Duplex RS-485; Data Format Type 8 Bit Data, No Polarity, 1-Stop Bit; Packet Size 75 Bytes; Enclosure Rating NEMA 6, IP67; Temperature Rating -40 to 185 Deg F; Relative Humidity 95 Percent; Approval UL (Canada and US), CUL, CSA (Canada and US), CE, ATEX, FCC; Applicable Standard IEC 68-2-6/68-2-27

MFG #: 12199

EECO #: BFDX80DR2MH1

Brand: Banner Engineering
Attributes
Features
Documents
Product Information
Attributes
Range
2 Mile
UNSPSC
43221721
Material
Polycarbonate
Frequencies
2.4 Giga Hertz
Wattage
65 Milliwatt
Features
  • Wireless Industrial I/O Device with Four Sinking Discrete Inputs, Two NMOS Discrete Outputs, Two Analog (0-20 mA) Inputs, One Thermistor Input, One Counter Input and Two Switch Power Outputs
  • Self-Healing, Auto-Routing RF Network with Multiple Hops Extends the Network's Range
  • Serial and I/O Communication on a Modbus Platform
  • Message Routing Improves Link Performance
  • Dip Switches Select Operational Modes - Master, Repeater or Slave
  • Built-In Site Survey Mode Enables Rapid Assessment of a Location's RF Transmission Properties
  • Frequency Hopping Spread Spectrum (FHSS) Technology Ensures Reliable Data Delivery within the Unlicensed Industrial, Scientific and Medical (ISM) Band
