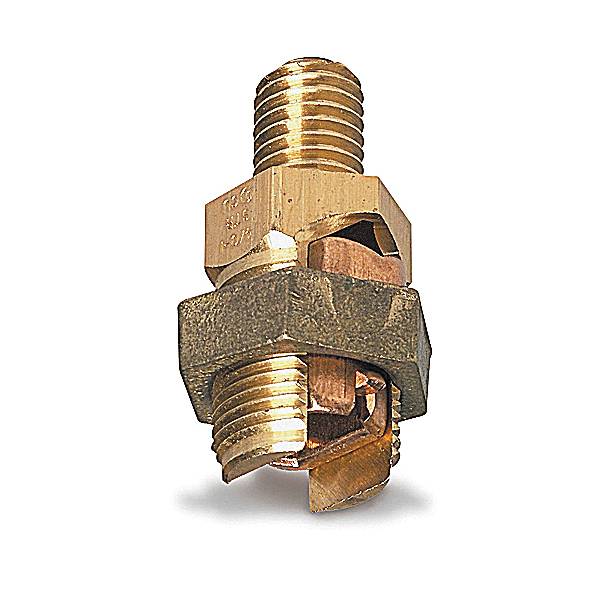

Blackburn® E-Z Ground® SP9SS Type DS Short Stud Mechanical Service Post Connector, 1 Conductors, 1/0 AWG to 350 kcmil Conductor, 5/8-11 x 1 in Stud, Bronze Alloy/Copper
Blackburn® E-Z Ground® SP9SS Type DS Short Stud Mechanical Service Post Connector, 1 Conductors, 1/0 AWG to 350 kcmil Conductor, 5/8-11 x 1 in Stud, Bronze Alloy/Copper
Blackburn® E-Z Ground® SP9SS Type DS Short Stud Mechanical Service Post Connector, 1 Conductors, 1/0 AWG to 350 kcmil Conductor, 5/8-11 x 1 in Stud, Bronze Alloy/Copper
Blackburn® E-Z Ground® SP9SS Type DS Short Stud Mechanical Service Post Connector, 1 Conductors, 1/0 AWG to 350 kcmil Conductor, 5/8-11 x 1 in Stud, Bronze Alloy/Copper
Share Share Print Print
ABB

Blackburn® E-Z Ground® SP9SS Type DS Short Stud Mechanical Service Post Connector, 1 Conductors, 1/0 AWG to 350 kcmil Conductor, 5/8-11 x 1 in Stud, Bronze Alloy/Copper

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

Blackburn® E-Z Ground® Service Post Connector, Type DS Short Stud Mechanical, 1 Conductors, 1/0 AWG to 350 kcmil Conductor, 5/8-11 x 1 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.373 to 0.715 in Dia, Bronze Alloy/Copper
MFG #: SP9SS

EECO #: BBSP9SS

Brand: Blackburn
UPC #: 783786121533
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121613
Material
Bronze Alloy/Copper
Stud Size
5/8-11 x 1 in
Application
For grounding and tapping
Conductor Size
1/0 AWG to 350 kcmil
Connection Type
Mechanical
Number of Conductors
1
Type
Type DS Short Stud Mechanical
Specifications
0.373 to 0.715 in Dia
Suitable For Use With
Steel Structure, Fence Post or Transformer and Bus Bar
Features
  • Hex design bolts are machined from high conductivity bronze alloy
  • Nuts and pressure bars are cold-formed from high strength copper or copper alloy
  • Pressure bars are copper through 4/0 size, copper alloy is used for 350 kcmil size and above
