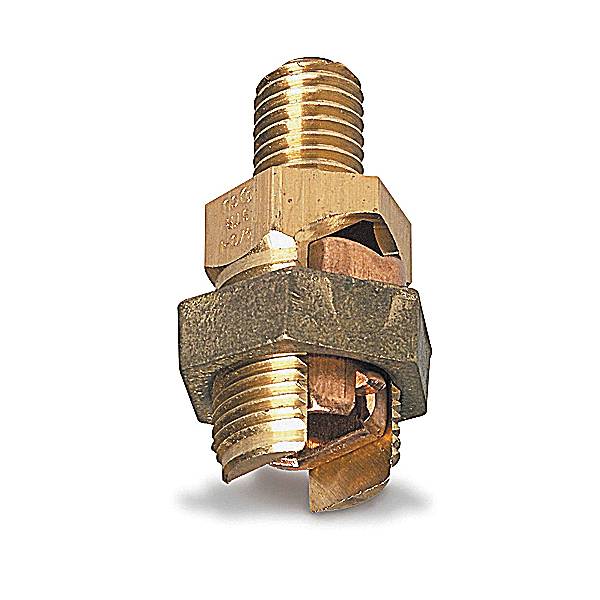

Blackburn® E-Z Ground® SP9DL Type SP Long Stud Mechanical Grounding Service Post Connector, 2 Conductors, 1/0 AWG to 350 kcmil Conductor, 5/8-11 x 1-1/2 in Stud, Bronze Alloy/Copper

Short Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

Blackburn® E-Z Ground® Service Post Connector, Type SP Long Stud Mechanical Grounding, 2 Conductors, 1/0 AWG to 350 kcmil Conductor, 5/8-11 x 1-1/2 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.373 to 0.715 in Dia, Bronze Alloy/Copper
MFG #: SP9DL

EECO #: BBSP9DL

Brand: Blackburn
UPC #: 783786805372
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121613
Material
Bronze Alloy/Copper
Stud Size
5/8-11 x 1-1/2 in
Application
For copper to copper connections, grounding of steel structures or transformers using one or two cables and tapping one or two cables from bus bar
Conductor Size
1/0 AWG to 350 kcmil
Connection Type
Mechanical
Number of Conductors
2
Type
Type SP Long Stud Mechanical Grounding
Specifications
0.373 to 0.715 in Dia
Suitable For Use With
Steel Structure, Fence Post or Transformer and Bus Bar
Features
  • Hex design bolts are machined from high conductivity bronze alloy
  • Nuts and pressure bars are cold-formed from high strength copper or copper alloy
  • Pressure bars are copper through 4/0 AWG, copper alloy is used for 350 kcmil size and above
