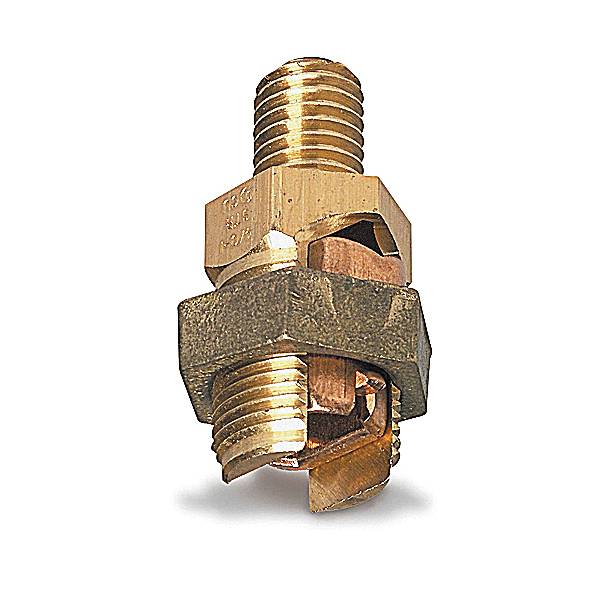

Blackburn® E-Z Ground® SP5SS Type DS Short Stud Non-Insulated Mechanical Service Post Connector, 1 Conductors, 2 to 1/0 AWG, 2 AWG Conductor, 1/2-13 x 3/4 in Stud, Bronze Alloy/Copper

Short Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

Blackburn® E-Z Ground® Service Post Connector, Type DS Short Stud Non-Insulated Mechanical, 1 Conductors, 2 to 1/0 AWG, 2 AWG Conductor, 1/2-13 x 3/4 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.259 to 0.385 in Dia, Bronze Alloy/Copper
MFG #: SP5SS

EECO #: BBSP5SS

Brand: Blackburn
UPC #: 783786121519
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121613
Material
Bronze Alloy/Copper
Stud Size
1/2-13 x 3/4 in
Application
For grounding and tapping
Conductor Size
2 to 1/0 AWG, 2 AWG
Connection Type
Mechanical
Number of Conductors
1
Type
Type DS Short Stud Non-Insulated Mechanical
Specifications
0.259 to 0.385 in Dia
Suitable For Use With
Steel Structure, Fence Post or Transformer and Bus Bar
Features
  • Hex design bolts are machined from high conductivity bronze alloy
  • Nuts and pressure bars are cold-formed from high strength copper or copper alloy
  • Pressure bars are copper through 4/0 size, copper alloy is used for 350 kcmil size and above
