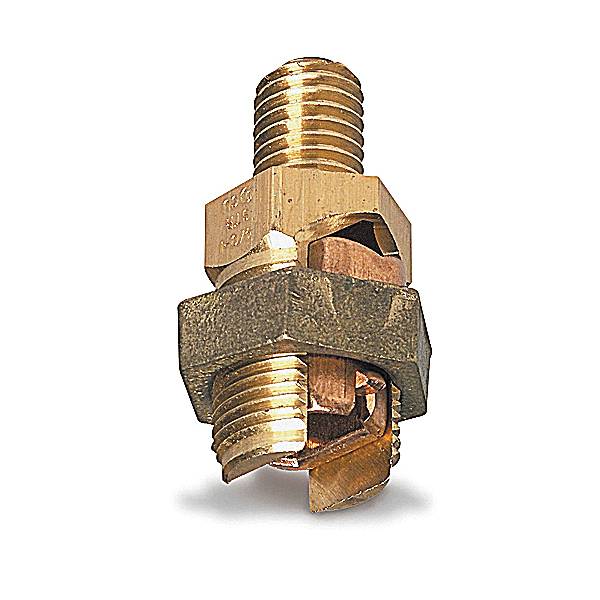

Blackburn® E-Z Ground® SP1SS Type DS Mechanical Grounding Short Stud Service Post Connector, 1 Conductors, 10 to 7 AWG, 10 to 6 AWG Conductor, 1/4-20 x 1/2 in Stud, Bronze Alloy/Copper

Short Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

Blackburn® E-Z Ground® Service Post Connector, Type DS Mechanical Grounding Short Stud, 1 Conductors, 10 to 7 AWG, 10 to 6 AWG Conductor, 1/4-20 x 1/2 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.17 to 0.102 in Dia, Bronze Alloy/Copper
MFG #: SP1SS

EECO #: BBSP1SS

Brand: Blackburn
UPC #: 783786121496
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121613
Material
Bronze Alloy/Copper
Stud Size
1/4-20 x 1/2 in
Application
For copper to copper connections, grounding of steel structures or transformers using one or two cables and tapping one or two cables from bus bar
Conductor Size
10 to 7 AWG, 10 to 6 AWG
Connection Type
Mechanical
Number of Conductors
1
Type
Type DS Mechanical Grounding Short Stud
Specifications
0.17 to 0.102 in Dia
Suitable For Use With
Steel Structure, Fence Post or Transformer and Bus Bar
Features
  • Hex design bolts are machined from high conductivity bronze alloy
  • Nuts and pressure bars are cold-formed from high strength copper or copper alloy
  • Pressure bars are copper through 4/0 AWG, copper alloy is used for 350 kcmil size and above
