0.5 HP, 5.2 A, 90 VDC, ABB CD3450 SCR Drive Motor, 0.625" Shaft, 1750 RPM, TEFC

Short Description

0.5 HP, 90 VDC, 5.2 A, 1750 RPM, 0.625" Shaft, TEFC, F Insulation Class, Shunt, SCR Drive Motor

SCR Drive Motor; Type Shunt; Power Rating 0.5 HP; Voltage Rating 90 Volt DC; Current Rating 5.2 Amp; Field Voltage 50/100 Volt DC; Field Current 0.5/1 Amp; Reversible Yes; Insulation Class F; Size 14.34 Inch Length; Frame Size NEMA 56C; Enclosure TEFC; Mounting C-Face with Base; Service Factor 1; Application Conveyors, Printing and Textile Equipment, Machine Tools; Approval UL, CSA; RoHS Compliant; Motor Type 3420D; Pulley End Bearing Type Sealed; Base Speed 1750 RPM; Shaft Diameter 0.625 Inch; Constant Torque Speed Range 20:1; Temperature Rating 40 Deg C

MFG #: CD3450

EECO #: BACD3450

Brand: Baldor-Reliance
UPC #: 781568124710
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
26101201
Approval
UL, CSA
Frame Size
NEMA 56C
Application
Conveyors, Printing and Textile Equipment, Machine Tools
Power Rating
0.5 HP
Current Rating
5.2 Amp
Service Factor
1
Voltage Rating
90 Volt DC
Insulation Class
F
Mounting
C-Face with Base
Enclosure
TEFC

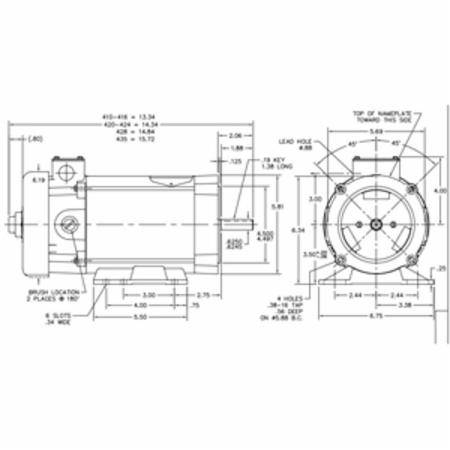

Size
14.34 Inch Length
Type
Shunt
Field Current
0.5/1 Amp
Field Voltage
50/100 Volt DC
Features
  • Designed for Use with NEMA Type K SCR Control
  • Normally Closed Thermostat on Field Winding
  • RoHS Compliant
  • Made in USA
