Advance 71A8773001 Core and Coil HID Ballast
Share Share Print Print
Signify

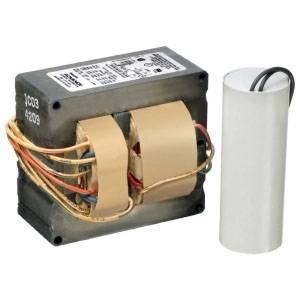

Advance 71A8773001 Core and Coil HID Ballast

Short Description

6" x 5.75" x 4.3", 120/208/240/277 VAC 60 Hz, 9.5/5.5/4.8/4.2 A, 1100 W, High Pressure Sodium, Magnetic Ballast, Oil Filled Capacitor, Core and Coil HID Ballast

Core and Coil HID Ballast; Contents Magnetic Ballast, Oil Filled Capacitor; Input Voltage 120/208/240/277 Volt AC; Input Current 9.5/5.5/4.8/4.2 Amp; Input Power 1100 Watt; Frequency Rating 60 Hertz; Lamp Type High Pressure Sodium; Lamp Wattage 1000 Watt; Circuit Type Constant Wattage Autotransformer; ANSI Code S52; Minimum Starting Temperature -40 Deg F; Size 6 Inch Length x 5.75 Inch Width x 4.3 Inch Height; Approval UL 1029, CSA 22.2; Core Size 4-1/4 Inch x 6 Inch; Temperature Rating 105 Deg C (Ignitor); Wire Strip Length 05 Millimeter; Power Factor 0.9; Capacitor Height 4.25 Inch

MFG #: 71A8773001

EECO #: AV71A8773001

Brand: Advance Ballast
UPC #: 781087877319
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39101902
Approval
UL 1029, CSA 22.2
Contents
Magnetic Ballast, Oil Filled Capacitor
Lamp Type
High Pressure Sodium
Circuit Type
Constant Wattage Autotransformer
Frequency Rating
60 Hertz
Minimum Starting Temperature
-40 Deg F
Size
6 Inch Length x 5.75 Inch Width x 4.3 Inch Height
ANSI Code
S52
Input Power
1100 Watt
Input Current
9.5/5.5/4.8/4.2 Amp
Input Voltage
120/208/240/277 Volt AC
Features
  • The Basic Ballast is the Open Core and Coil Which is Most Often Used as a Component within a Lighting Luminaire
  • The Core and Coil also Forms the Nucleus of Philips Advance's Five Other Ballast Configurations
  • It Consists of Either One or Two Copper Coils on a Core of Electrical-Grade Steel Laminations
  • The Coils are Assembled to Core Sections Which are then Surface Welded Together
  • The Assembled Philips Advance Ballast is Vacuum-Pressure Impregnated with a Silica-Filled Polyester Varnish to Re-Enforce the Electrical Insulation, Preclude Moisture, Inhibit Noise and Dissipate Heat
  • Some HID Ballast Manufacturers Apply Varnish Via a Preheat-And-Dip Process Which only Puts a Thin Coated of Varnish on the Outer Surface of the Ballast
  • 2 Year Warranty
AV71A8773001CAT
Qty Unit price
Ea
1 $1,067.35

Slqt
1 $1,067.35

Stpk
1 $1,067.35

Unit
1 $1,067.35
