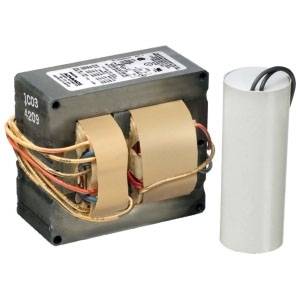

Advance 71A8142001D Core and Coil HID Ballast

Short Description

3.9" x 4.3" x 2.8", 480 VAC 60 Hz, 0.7 A, 188 W, High Pressure Sodium, Magnetic Ballast, Dry Film Capacitor, Core and Coil HID Ballast

Core and Coil HID Ballast; Contents Magnetic Ballast, Dry Film Capacitor; Input Voltage 480 Volt AC; Input Current 0.7 Amp; Input Power 188 Watt; Frequency Rating 60 Hertz; Lamp Type High Pressure Sodium; Lamp Wattage 150 Watt; Circuit Type HX-HPF; ANSI Code S55 (55 Volt Arc Tube); Minimum Starting Temperature -40 Deg F; Size 3.9 Inch Length x 4.3 Inch Width x 2.8 Inch Height; Approval UL 1029, CSA 22.2; RoHS Compliant; Core Size 3 Inch x 4.3 Inch; Ballast Factor 1; Power Factor 0.9

MFG #: 71A8142001D

EECO #: AV71A8142001D

Brand: Advance Ballast
UPC #: 781087814215
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39101902
Approval
UL 1029, CSA 22.2
Contents
Magnetic Ballast, Dry Film Capacitor
Lamp Type
High Pressure Sodium
Circuit Type
HX-HPF
Frequency Rating
60 Hertz
Minimum Starting Temperature
-40 Deg F
Size
3.9 Inch Length x 4.3 Inch Width x 2.8 Inch Height
ANSI Code
S55 (55 Volt Arc Tube)
Input Power
188 Watt
Input Current
0.7 Amp
Input Voltage
480 Volt AC
Features
  • Reliable Performance
  • The Basic Ballast is the Open Core and Coil Which is Most Often Used as a Component within a Lighting Luminaire
  • The Core and Coil also Forms the Nucleus of Philips Advance's Five Other Ballast Configurations
  • Vacuum-Pressure Impregnation is Used to Re-Enforce the Electrical Insulation of the Ballast, Preclude Moisture, Inhibit Noise and Dissipate Heat
  • Pre-Insulated Voltage Leads Reduce the Risk of Shock and Shrink Installation Time
  • Vacuum-Pressure Impregnated with a Silica-Filled Polyester Varnish
  • Pre-Insulated Voltage Leads
  • Ballast Kits Supplied with Pre-Wired Ignitor
  • Application High Bay Retail, Manufacturing, Gymnasiums, Warehouses, Parking Structures, Outdoor
  • RoHS Compliant
