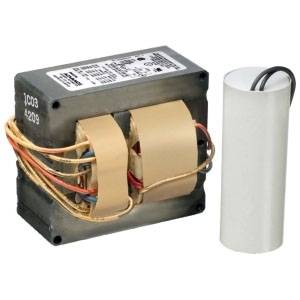

Advance 71A8071001D Core and Coil HID Ballast Kit

Short Description

3.9" x 3.45" x 2.8", 120/208/240/277 VAC 60 Hz, 2.2/1.3/1.1/0.9 A, 135 W, High Pressure Sodium, Magnetic Ballast, Dry Film Capacitor, Core and Coil HID Ballast Kit

Core and Coil HID Ballast Kit; Contents Magnetic Ballast, Dry Film Capacitor; Input Voltage 120/208/240/277 Volt AC; Input Current 2.2/1.3/1.1/0.9 Amp; Input Power 135 Watt; Frequency Rating 60 Hertz; Lamp Type High Pressure Sodium; Lamp Wattage 100 Watt; Circuit Type HX-HPF; ANSI Code S54; Minimum Starting Temperature -40 Deg F; Size 3.9 Inch Length x 3.45 Inch Width x 2.8 Inch Height; Approval UL 1029, CSA 22.2; RoHS Compliant; Core Size 3 Inch x 4 Inch; Ballast Factor 1; Power Factor 0.9; Temperature Rating 105 Deg C (Igniter/Capacitor); Application Outdoor

MFG #: 71A8071001D

EECO #: AV71A8071001D

Brand: Advance Ballast
UPC #: 781087807118
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39101902
Approval
UL 1029, CSA 22.2
Contents
Magnetic Ballast, Dry Film Capacitor
Lamp Type
High Pressure Sodium
Circuit Type
HX-HPF
Frequency Rating
60 Hertz
Minimum Starting Temperature
-40 Deg F
Size
3.9 Inch Length x 3.45 Inch Width x 2.8 Inch Height
ANSI Code
S54
Input Power
135 Watt
Lamp Wattage
100 Watt
Input Current
2.2/1.3/1.1/0.9 Amp
Input Voltage
120/208/240/277 Volt AC
Features
  • The Basic Ballast is the Open Core and Coil Which is Most Often Used as a Component within a Lighting Luminaire
  • The Core and Coil also Forms the Nucleus of the Five Other Ballast Configurations Detailed in this Section
  • It Consists of Either One or Two Copper Coils on a Core (or Stack) of Electrical-Grade Steel Laminations
  • The Coils are Assembled to Core Sections Which are then Surface Welded Together
  • We Offer a Wide Range of Ballasts that have Coils Made Out of Copper and/or Aluminum
  • RoHS Compliant
ABTFRME00596_7_1_7_4_7_6_7_10_7_28
ABTFRME00745_1_2
PHILTGE09142_1
SignifyHolding_Philips_00305_1_2_DATA
Qty Unit price
Ea
1 $426.16

Slqt
1 $426.16

Stpk
1 $426.16

Unit
1 $426.16
