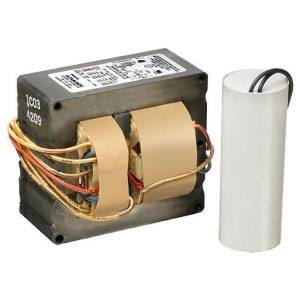

Advance 71A8007001DB Core and Coil HID Ballast Kit
Share Share Print Print
Signify

Advance 71A8007001DB Core and Coil HID Ballast Kit

Short Description

115 W, 120 VAC 60 Hz, 1.8 A, High Pressure Sodium Lamp, Magnetic Ballast, Dry Capacitor, Integral Igniter, Core and Coil HID Ballast Kit

Core and Coil HID Ballast Kit; Contents Magnetic HID Ballast, Dry Capacitor, Integral Igniter; Input Voltage 120 Volt; Input Current 1.8 Amp; Input Power 115 Watt; Frequency Rating 60 Hertz; Lamp Type High Pressure Sodium; Lamp Wattage 100 Watt; Circuit Type R-HPF; ANSI Code S54; Minimum Starting Temperature -40 Deg F; Size 2-5/8 Inch Length x 3.4 Inch Width x 2-3/16 Inch Height; Approval UL 1029, CSA 22.2; RoHS Compliant; Core Size 2-5/8 Inch x 2-3/16 Inch; Ballast Factor 1; Power Factor 0.9; Constant Wattage Deviation Within Trapezoid; Number of Lamps 1; Temperature Rating 105 Deg C (Capacitor/Igniter); Application High Bay Retail, Manufacturing, Gymnasium, Warehouse, Parking Structure, Outdoor

MFG #: 71A8007001DB

EECO #: AV71A8007001DB

Brand: Advance Ballast
UPC #: 781087026304
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39101902
Approval
UL 1029, CSA 22.2
Contents
Magnetic HID Ballast, Dry Capacitor, Integral Igniter
Lamp Type
High Pressue Sodium
Circuit Type
R-HPF
Frequency Rating
60 Hertz
Minimum Starting Temperature
-40 Deg F
Size
2-5/8 Inch Length x 3.4 Inch Width x 2-3/16 Inch Height
ANSI Code
S54
Input Power
115 Watt
Lamp Wattage
100 Watt
Input Current
1.8 Amp
Input Voltage
120 VAC
Features
  • Vacuum-pressure impregnated with a silica-filled polyester varnish
  • Pre-insulated voltage leads
  • Vacuum-pressure impregnation is used to re-enforce the electrical insulation of the ballast, preclude moisture, inhibit noise and dissipate heat
  • Pre-insulated voltage leads reduce the risk of shock and shrink installation time
  • RoHS Compliant
SignifyHolding_Advance_00018_1_7_SPEC
SignifyHolding_Advance_00052_1_DATA
Qty Unit price
Ea
1 $347.96

Slqt
1 $347.96

Stpk
1 $347.96

Unit
1 $347.96
