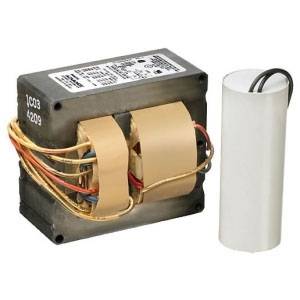

Advance 71A6553001 Core and Coil HID Ballast Kit
Share Share Print Print
Signify

Advance 71A6553001 Core and Coil HID Ballast Kit

Short Description

120/208/240/277/480 VAC 60 Hz, Metal Halide Lamp, Magnetic HID, Ballast, Core and Coil HID Ballast Kit

Core and Coil HID Ballast Kit; Contents Magnetic HID, Ballast; Input Voltage 120/208/240/277/480 Volt; Input Current 5.16/4.3/3.09/2.61/1.6 Amp (Open Circuit), 6/2.82/3/2.3/1.53 Amp (Starting), 4.35-6.52/2.16 to 3.24/2.04 to 3.06/1.8 to 2.71/1 to 1.51 Amp (Short Circuit), 9.05/5.6/4.7/4.07/2.36 Amp (Operating); Frequency Rating 60 Hertz; Lamp Type Metal Halide; Lamp Wattage 1000 Watt; Circuit Type Super Constant Wattage Autotransformer; ANSI Code M149 (Pulse Start); Minimum Starting Temperature 90 Deg C (Capacitor), 105 Deg C (Igniter); Size 4.35 Inch Length x 6 Inch Width; Approval UL 1029, CSA 22.2; RoHS Compliant; Core Size 4-1/4 x 6 (2 Coil); Ballast Factor 1; Power Factor 0.96; Temperature Rating 90 Deg C (Capacitor), 105 Deg C (Igniter); Wire Strip Length 0.5 Millimeter; Wire Length By Color 12 Inch; Wire Type Stranded

MFG #: 71A6553001

EECO #: AV71A6553001

Brand: Advance Ballast
UPC #: 781087091746
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39101902
Approval
UL 1029, CSA 22.2
Contents
Magnetic HID, Ballast
Lamp Type
Metal Halide
Circuit Type
Super Constant Wattage Autotransformer
Frequency Rating
60 Hertz
Minimum Starting Temperature
90 Deg C (Capacitor), 105 Deg C (Igniter)
Size
4.35 Inch Length x 6 Inch Width
ANSI Code
M149 (Pulse Start)
Lamp Wattage
1000 Watt
Input Current
5.16/4.3/3.09/2.61/1.6 Amp (Open Circuit), 6/2.82/3/2.3/1.53 Amp (Starting), 4.35-6.52/2.16 to 3.24/2.04 to 3.06/1.8 to 2.71/1 to 1.51 Amp (Short Circuit), 9.05/5.6/4.7/4.07/2.36 Amp (Operating)
Input Voltage
277/347/480/120 VAC
Features
  • Vacuum-pressure impregnated with a silica-filled polyester varnish
  • Pre-insulated voltage leads
  • Vacuum-pressure impregnation is used to re-enforce the electrical insulation of the ballast, preclude moisture, inhibit noise and dissipate heat
  • Pre-insulated voltage leads reduce the risk of shock and shrink installation time
  • RoHS Compliant
