Philips Lighting 913700536709 Core and Coil HID Ballast Kit

Short Description

6" x 4.5" x 4.3", 480 VAC at 60 Hz, 2.3 A, 1080 W, Metal Halide Lamp, Magnetic Ballast, Oil Filled Capacitor, Core and Coil HID Ballast Kit

Core and Coil HID Ballast Kit; Contents Magnetic Ballast, Oil Filled Capacitor; Input Voltage 480 Volt AC; Input Current 2.3 Amp; Input Power 1080 Watt; Frequency Rating 60 Hertz; Lamp Type Metal Halide; Lamp Wattage 1000 Watt; Circuit Type Constant Wattage Autotransformer; ANSI Code M47; Minimum Starting Temperature -20 Deg F; Size 6 Inch Length x 4.5 Inch Width x 4.3 Inch Height; Approval UL 1029, CSA 22.2; RoHS Compliant; Core Size 4-1/4 Inch x 6 Inch; Ballast Factor 1; Power Factor 0.9; Temperature Rating 90 Deg C (Capacitor); Application Outdoor

MFG #: 913700536709

EECO #: AV71A6542001

Brand: Advance Ballast
UPC #: 781087022399
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39101902
Approval
UL 1029, CSA 22.2
Contents
Magnetic Ballast, Oil Filled Capacitor
Lamp Type
Metal Halide
Circuit Type
Constant Wattage Autotransformer
Frequency Rating
60 Hertz
Minimum Starting Temperature
-20 Deg F

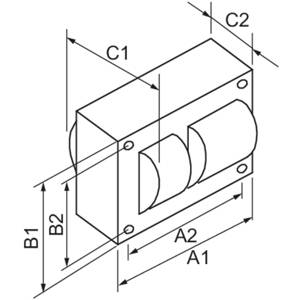

Size
6 Inch Length x 4.5 Inch Width x 4.3 Inch Height
ANSI Code
M47
Input Power
1080 Watt
Lamp Wattage
1000 Watt
Input Current
2.3 Amp
Input Voltage
480 Volt AC
Features

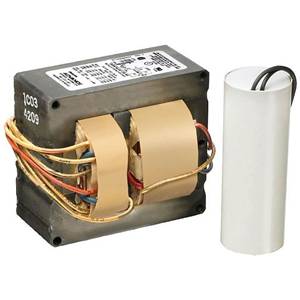

  • The Basic Ballast is the Open Core and Coil Which is Most Often Used as a Component within a Lighting Luminaries
  • The Core and Coil also Forms the Nucleus of the Five Other Ballast Configurations Detailed in this Section
  • It Consists of Either One or Two Copper Coils on a Core (Or Stack) of Electrical-Grade Steel Laminations
  • The Coils are Assembled to Core Sections Which are then Surface-Welded Together
  • We Offer a Wide Range of Ballasts that have Coils Made Out of Copper And/or Aluminum
  • RoHS Compliant
PHILTGE04846_7_1_7_3_7_10_7_23
PHILTGE06153_1
PHILTGE07726_1_3
Qty Unit price
Ea
1 $707.71

Slqt
1 $707.71

Stpk
1 $707.71

Unit
1 $707.71
