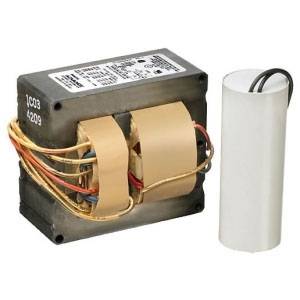

PrintAdvance 71A6052001D Core and Coil HID Ballast Kit
454 W, 120/208/240/277/480 VAC 60 Hz, 3.8/2.2/1.9/1.7/1 A, Metal Halide Lamp, Magnetic Ballast, Dry Film Capacitor, Core and Coil HID Ballast Kit
Core and Coil HID Ballast Kit; Contents Magnetic HID Ballast, Dry Film Capacitor; Input Voltage 120/208/240/277/480 Volt; Input Current 3.8/2.2/1.9/1.7/1 Amp; Input Power 454 Watt; Frequency Rating 60 Hertz; Lamp Type Metal Halide; Lamp Wattage 400 Watt; Circuit Type Super Constant Wattage Autotransformer; ANSI Code M135/M155/M172 (Pulse Start); Minimum Starting Temperature -20 Deg F; Size 4-3/4 Inch Length x 4-1/4 Inch Width x 4-1/4 Inch Height; Approval UL 1029, CSA 22.2; RoHS Compliant; Core Size 4-1/4 Inch x 4-3/4 Inch; Ballast Factor 1; Power Factor 0.9; Constant Wattage Deviation 10 Percent; Number of Lamps 1; Temperature Rating 105 Deg C (Capacitor/Igniter); Application High Bay Retail, Manufacturing, Gymnasium, Warehouse, Parking Structure, Outdoor
EECO #: AV71A6052001D
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $569.87 |
|
Slqt |
|
| 1 | $569.87 |
|
Stpk |
|
| 1 | $569.87 |
|
Unit |
|
| 1 | $569.87 |
