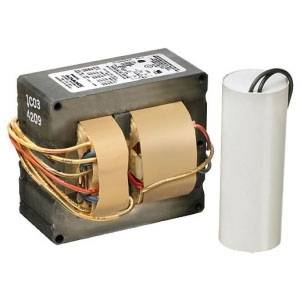

Advance 71A6041001D Core and Coil HID Ballast Kit
Share Share Print Print
Signify

Advance 71A6041001D Core and Coil HID Ballast Kit

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

462 W, 480/120 VAC 60 Hz, 1 A, Metal Halide Lamp, Magnetic Ballast, Dry Film Capacitor, Core and Coil HID Ballast Kit

Core and Coil HID Ballast Kit; Contents Magnetic HID Ballast, Dry Film Capacitor; Input Voltage 480/120 Volt; Input Current 1 Amp; Input Power 462 Watt; Frequency Rating 60 Hertz; Lamp Type Metal Halide; Lamp Wattage 400 Watt; Circuit Type Constant Wattage Autotransformer; ANSI Code M59; Minimum Starting Temperature -20 Deg F; Size 4-3/4 Inch Length x 4 Inch Width x 4-1/4 Inch Height; Approval UL 1029, CSA 22.2; RoHS Compliant; Core Size 4-1/4 Inch x 4-3/4 Inch; Ballast Factor 1; Power Factor 0.9; Constant Wattage Deviation 10 Percent; Number of Lamps 1; Tapping Voltage 120 Volt; Temperature Rating 105 Deg C (Capacitor); Application High Bay Retail, Manufacturing, Gymnasium, Warehouse, Parking Structure, Outdoor

MFG #: 71A6041001D

EECO #: AV71A6041001D

Brand: Advance Ballast
UPC #: 781087096505
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39101902
Approval
UL 1029, CSA 22.2
Contents
Magnetic HID Ballast, Dry Film Capacitor
Lamp Type
Metal Halide
Circuit Type
Constant Wattage Autotransformer
Frequency Rating
60 Hertz
Minimum Starting Temperature
-20 Deg F
Size
4-3/4 Inch Length x 4 Inch Width x 4-1/4 Inch Height
ANSI Code
M59
Input Power
462 Watt
Lamp Wattage
400 Watt
Input Current
1 Amp
Input Voltage
480/120 VAC
Features
  • Vacuum-pressure impregnated with a silica-filled polyester varnish
  • Vacuum-pressure impregnation is used to re-enforce the electrical insulation of the ballast, preclude moisture, inhibit noise and dissipate heat
  • Pre-insulated voltage leads reduce the risk of shock and shrink installation time
  • RoHS Compliant
SignifyHolding_Advance_00013_1_4_SPEC
SignifyHolding_Advance_00044_1_DATA
Qty Unit price
Ea
1 $407.83

Slqt
1 $407.83

Stpk
1 $407.83

Unit
1 $407.83
