Toshiba AS3P4110AA Low Voltage Adjustable Speed Drive, 480 V, 23.5/31.7 A, 15 hp, 20 hp, 32 in W x 22 in D

Short Description

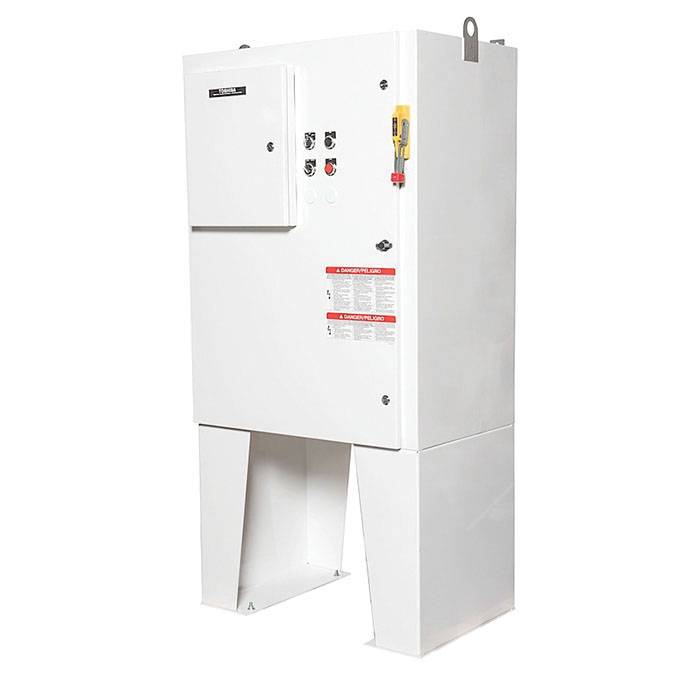

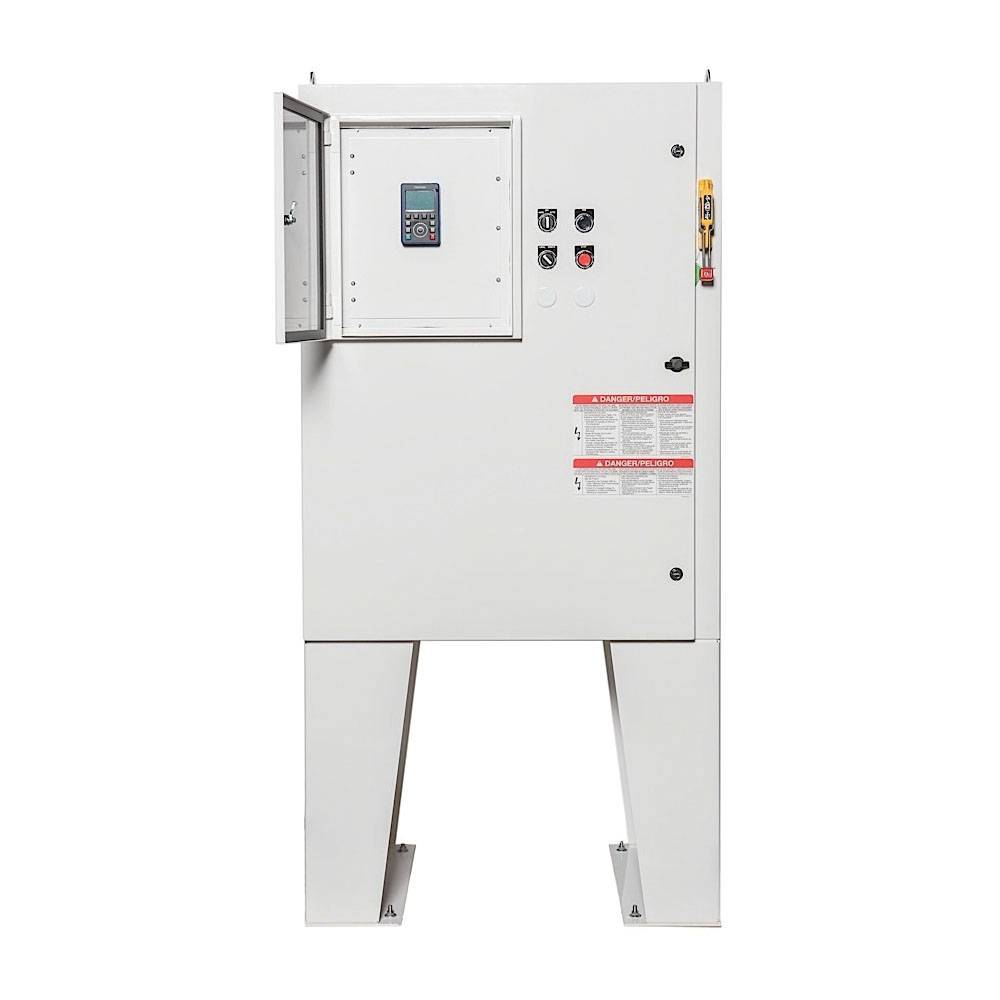

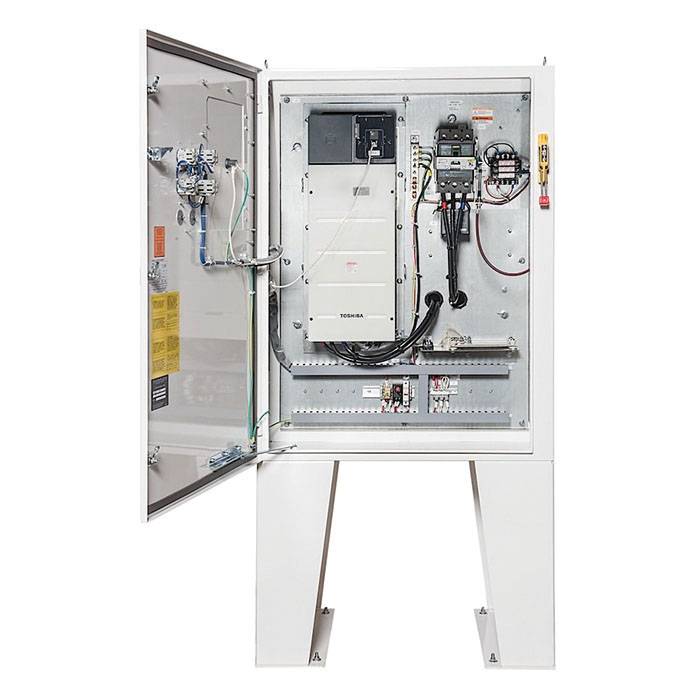

The durable AS3P adjustable speed drive (ASD) outdoor assembly is a short lead time product available at low costs by utilizing a standardized design and options. These include line reactors, surge arrestors and a maximum of 4 door mounted control options. All units have a NEMA 3R outdoor rated free standing enclosure.

Toshiba Adjustable Speed Drive, Low Voltage, Series: AS3P, 480 V, 23.5/31.7 A, 15 hp, 20 hp, 32 in Width, 22 in D, 72 in Height, NEMA 3R, LCD, Freestanding Mount
MFG #: AS3P4110AA

EECO #: AS3P4110AA

Brand: Toshiba
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122001
Application
Oil and Gas, Mining and Minerals, Chemical, Water and Wastewater, Pumps, Fans, Compressors, Centrifuges, Conveyors, Mixers, Pump Jacks, Crushers, Cranes and Hoists
Display Type
LCD
Mounting Type
Freestanding
Enclosure Type
NEMA 3R
Voltage Rating
480
Type
Low Voltage
Depth
22
Width
32
Height
72
Series
AS3P
Includes
Circuit Breaker and DC Link Reactor
Horsepower
15 hp, 20 hp
Amperage Rating
23.5/31.7
Features
  • Dual rating through parameter change heavy duty 150% overload for 60 s so normal duty 120% overload for 60 s
  • Eight programmable digital inputs
  • Three programmable digital outputs - (1) form-C relay and (2) form-A dry contact relays
  • Three programmable analog inputs - (1) 4 to 20 mA, (1) 0 to 10 VDC and (1) +10 VDC
  • Two programmable analog outputs - both 4 to 20 mA or 0 to 10 VDC
  • 2-wire/4-wire RS485 communications
  • Built-in dual port ethernet IP
  • Embedded web server
  • Real-time clock for past trip monitoring or calendar functionality
  • QR code display for additional parameter information and fault troubleshooting
  • Advanced LCD keypad with capacitive touch wheel for navigating and programming
  • Save, restore and clone multiple drive settings
  • Built dynamic braking drive circuit up to 100 hp HD (125 hp ND) 460 V
  • Up to 1000 m altitude without derate
  • 95% non-condensing humidity
