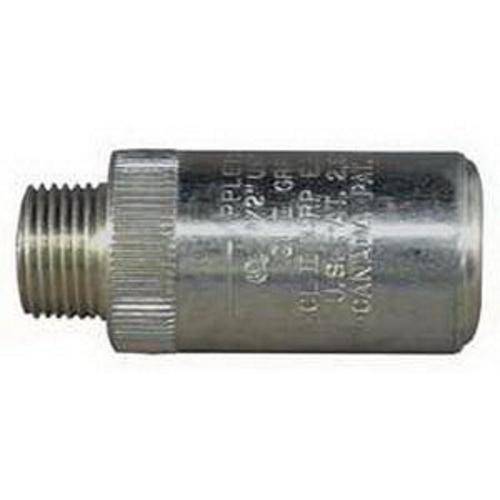

Appleton® UNILETS® UNYL-75 Dust-Ignitionproof Explosionproof Long Conduit Union, 3/4 in, Steel, Zinc Electroplated

Short Description

Appleton® UNY, UNF, and UNL explosionproof and dust-ignitionproof unions are used for joining conduit and connecting conduit to enclosures. They facilitate modifications and permit the removal of enclosures without turning or removing conduit. They are also available as expansion unions, which compensate for the expansion and contraction of conduit.

Appleton® UNILETS® Conduit Union, Dust-Ignitionproof Explosionproof Long, Series: UNY, 3/4 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Steel, Zinc Electroplated, 1.44 in OD x 4.28 in L
MFG #: UNYL-75

EECO #: APUNYL75

Brand: Appleton
UPC #: 781381696951
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Electroplated
UNSPSC
39131707
Approval
UL 886/E34997, CSA C22.2
Material
Steel
Trade Size
3/4 inch
Application
For connecting conduit to enclosure
Size
3/4
Type
Dust-Ignitionproof Explosionproof Long
Series
UNY
Diameter
1.44 Inch
Warranty
Limited
Dimensions
1.44 in OD x 4.28 in L
Suitable For Use With
IMC/Threaded Rigid Metallic Conduit
Features
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • One piece design eliminates need for disassembly during installation
  • Telescoping cylinder within cylinder design permits expansion or contraction
  • Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment
  • Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders
  • Expansion unions compensate for expansion and contraction of conduit
  • Male threaded connection
Appleton_CLB1010_MT_Warranty
Appleton_UNF_50_Specification_Sheet
