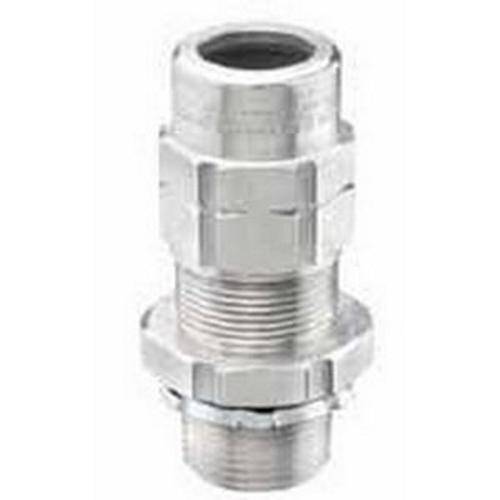

Appleton® TMC2-050075NB TMC2 Cable Gland Connector, 1/2 in Trade, 1/2 to 3/4 in Cable Openings, Brass, Nickel Plated
Share Share Print Print
Appleton

Appleton® TMC2-050075NB TMC2 Cable Gland Connector, 1/2 in Trade, 1/2 to 3/4 in Cable Openings, Brass, Nickel Plated

Short Description

Appleton® TMC2 Connectors are designed for use with MC/MC-HL, corrugated interlocked aluminum/steel armor or continuously welded armor (TECK or CLx) cables. They are used to provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor.

Appleton® Cable Gland Connector, Series: TMC2, 1/2 in, Cable Openings: 1/2 to 3/4 in, JMC/MC/Teck Cable, NPT, 360 deg, Brass, Nickel Plated, -60 to 110 deg C, 1.2 in Dia Across Flat x 1.3 in Dia Across Corner x 2.43 in L
MFG #: TMC2-050075NB

EECO #: APTMC2050075NB

Brand: Appleton
UPC #: 781381300933
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Cable Type
JMC/MC/Teck
Trade Size
1/2
Application
For jacketed metal clad, MC/MC-HL, corrugated interlocked aluminum/steel armor and continuously welded armor cable
Connection Type
NPT
Temperature Rating
-60 to 110
Angle
360
Series
TMC2
Dimensions
1.2 in Dia Across Flat x 1.3 in Dia Across Corner x 2.43 in L
Features
  • Simplified two piece design
  • Integral 'O' ring face seal providing - 4X and IP66
  • Independent sealing and armor clamping
  • Removable cable armor end stop accommodates larger insulated conductors
  • Superior pull-out prevention
  • Compact slim profile
  • Reduced installation time
  • Widest cable acceptance range
  • Re-usable design
  • Additional integral deluge proof seal for protection in extreme offshore and onshore environments
