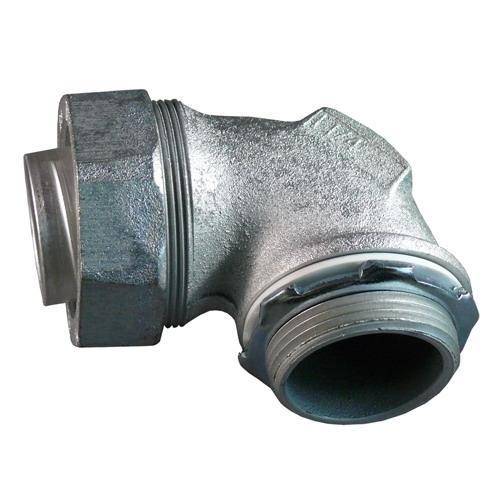

Appleton® ST-90125 Liquid Tight Oiltight Raintight Conduit Connector With Plain Throat, 1-1/4 in Trade, 90 deg, Malleable Iron, Triple Coated

Short Description

1-1/4", Triple Coated Malleable Iron, Plain Throat, 90D, Liquidtight Flexible Metal Conduit Connector

Appleton® Conduit Connector, Liquid Tight Oiltight Raintight, Series: ST Series, 1-1/4 in, 90 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 2.31 in W
MFG #: ST-90125

EECO #: APST90125

Brand: Appleton
UPC #: 781381680608
Attributes
Features
Documents
Product Information
Attributes
Finish
Triple Coated
UNSPSC
39121420
Used On
Liquidtight Flexible Metallic Conduit
Approval
UL, CSA
Material
Malleable Iron
Trade Size
1-1/4
Application
Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation
Throat Type
Plain
Type
Liquid Tight Oiltight Raintight
Angle
90
Series
ST Series
Warranty
Limited
Dimensions
2.31 in W
Suitable For Use With
Liquid Tight Flexible Metallic Conduit
Features
  • Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
  • Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
  • Polypropylene sealing ring with locknut standard
  • Full, machined tapered threads (NPT)
  • Compact design with small turning radius
  • Seals out oil, water, dust, dirt and fumes
  • Suitable for wet locations
  • Chromate/epoxy powder coated/zinc electroplated finish
