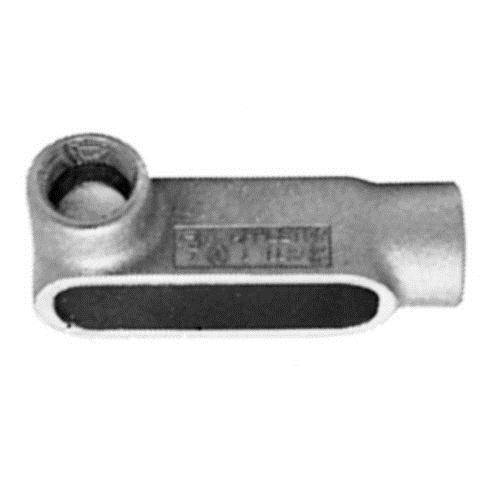

Appleton® UNILETS™ LL87-SA Type LL Conduit Outlet Body, 3 in Hub, Form 7, 133 cu-in, Cast Aluminum, Epoxy Powder Coated
Share Share Print Print
Appleton

Appleton® UNILETS™ LL87-SA Type LL Conduit Outlet Body, 3 in Hub, Form 7, 133 cu-in, Cast Aluminum, Epoxy Powder Coated

Short Description

Appleton® FM7™ Conduit Outlet Bodies are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.

Appleton® UNILETS™ Conduit Outlet Body, Type LL, 3 in Hub, 2 Hubs, 133 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Cast Aluminum, Epoxy Powder Coated Finish, 10.5 in L x 5.75 in W x 5.88 in H Dimensions
MFG #: LL87-SA

EECO #: APLL87SA

Brand: Appleton
UPC #: 781381606646
Attributes
Features
Documents
Product Information
Attributes
Finish
Epoxy Powder Coated
UNSPSC
39131708
Hub Size
3
Material
Cast Aluminum
Application
For Rigid Steel/Aluminum and IMC Conduit
Mounting Type
Surface
Number of Hubs
2
Connection Type
Tapered FNPT
Enclosure
NEMA FB-1
Type
Type LL
Capacity
133
Warranty
Limited
Dimensions
10.5 in L x 5.75 in W x 5.88 in H
Features
  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations
  • Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
  • Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
  • Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
  • Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions
  • Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
  • Fits flush and snug against flat surfaces for more stable installation
  • Smooth hub bushings and cover openings protect conductor insulation
  • Smooth hub openings allow easy conduit joining
  • Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
  • Cover screws and clips are captive to prevent loss
  • Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
