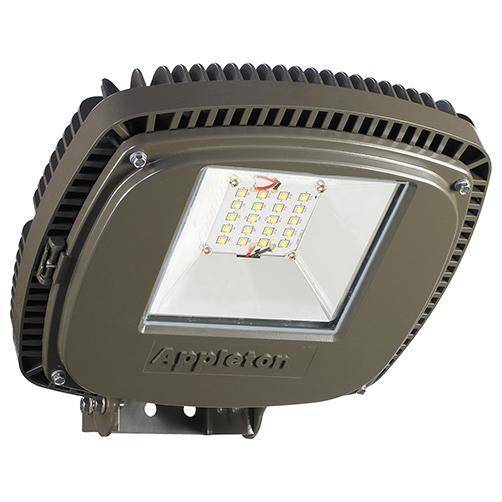

Appleton® Industrial Areamaster™ IAMLED87YBU1 LED Floodlight Fixture, LED Lamp, 750 W Fixture, 120/277 VAC, Architectural Bronze Housing
Share Share Print Print
Appleton

Appleton® Industrial Areamaster™ IAMLED87YBU1 LED Floodlight Fixture, LED Lamp, 750 W Fixture, 120/277 VAC, Architectural Bronze Housing

Short Description

Illuminate your space with the powerful and durable Appleton® Industrial Areamaster™ IAMLED87YBU1 LED Floodlight Fixture. Featuring a robust architectural bronze housing and a high-performance 750 W LED lamp, this fixture is perfect for any industrial application.Enhanced by AI

Appleton® Industrial Areamaster™ Floodlight Fixture, Series: LED, 120/277 VAC, 750 W Fixture, 1.6 to 0.7 A, LED Lamp, 750 W Lamp, Glass Lens, NEMA 3R/4X/IP66/IP67 Enclosure, Yoke Mounting, Aluminum Housing Material, Architectural Bronze Housing Finish, 14.1 in H x 15.3 in W x 3.7 in D Dimensions

MFG #: IAMLED87YBU1

EECO #: APIAMLED87YBU1

Brand: Appleton
UPC #: 781381367424
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39112102
Lamp Type
LED
Application
For security lighting, production facilities, warehouses, processing plants, storage areas, parking garages and lots
Mounting Type
Yoke
Enclosure Type
NEMA 3R/4X/IP66/IP67
Voltage Rating
120/277
Housing Material
Aluminum
Series
LED
Lens Type
Glass
Dimensions
14.1 in H x 15.3 in W x 3.7 in D
Lamp Wattage
750
Housing Finish
Architectural Bronze
Amperage Rating
1.6 to 0.7
Features
  • Compact in size, attractively styled contemporary design, rugged and dependable
  • Easy to install and service
  • One piece housing
  • One piece lens in hinged cover and secured by four M6 captive stainless steel slotted hex head bolts
  • Thermal shock and impact-resistant glass lens standard
  • Diffused polycarbonate lens available as an option
  • Heavy duty, high temperature silicone rubber gasket, mechanically secured
  • Universal design for flood and high bay mounting
  • Cool operating temperatures translate into long luminarie life
  • Available with a total of three (3) 3/4 in NPT entries with integral bushings
  • (2) 3/4 in NPT aluminum close-up plugs provided
  • Terminal block (screw type for secure connection) can accept 24 to 10 AWG and IEC 0.2 to 4 sq-mm
  • Metallized high reflectance reflector
  • Zinc plated steel yoke
  • Stainless steel bolts
  • 50/60 Hz frequency
  • Suitable for use in wet locations
  • 176/175 W nominal input power
  • 0.5 total harmonic distortion
  • > 0.98 power factor
