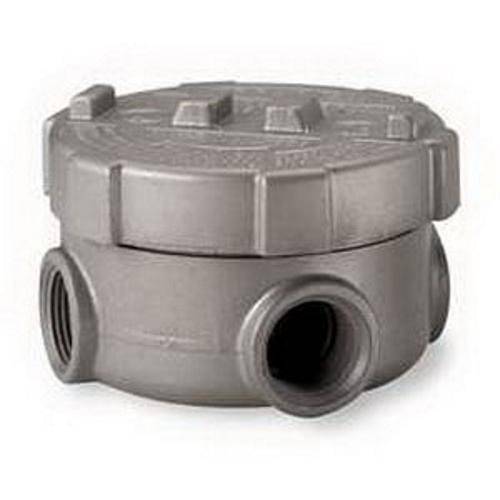

Appleton® UNILETS™ GRU75-A Dust-Ignitionproof Universal Explosionproof Conduit Outlet Box, 3/4 in, 3.38 in Cover Opening, 13-1/2 cu-in, Epoxy Powder Coated
Share Share Print Print
Appleton

Appleton® UNILETS™ GRU75-A Dust-Ignitionproof Universal Explosionproof Conduit Outlet Box, 3/4 in, 3.38 in Cover Opening, 13-1/2 cu-in, Epoxy Powder Coated

Short Description

Appleton® explosionproof, dust-ignitionproof GRU universal conduit outlet boxes are furnished with internal ground screw and O-ring. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintece, allow the connection of different lengths of conduit, and for changing the direction of conduit.

Appleton® UNILETS™ Explosionproof Conduit Outlet Box, Dust-Ignitionproof Universal, Series: GRU, 3/4 in Size, 3.38 in Cover Opening, 13-1/2 cu-in Capacity, For Use With: Threaded Metal Conduit System, Aluminum, Epoxy Powder Coated Finish, 3.75 in H x 2.69 in W Dimensions
MFG #: GRU75-A

EECO #: APGRU75A

Brand: Appleton
UPC #: 781381117098
Attributes
Features
Documents
Product Information
Attributes
Finish
Epoxy Powder Coated
UNSPSC
39121308
Material
Aluminum
Application
Indoor/Outdoor Applications
Size
3/4
Type
Dust-Ignitionproof Universal
Series
GRU
Capacity
13-1/2
Includes
(5) Threaded Hubs, (3) Close-Up Plugs, Epoxy Powder Coat Cover, Externally Threaded Aluminum Surface Cover, Internal Ground Screw and O-Ring
Warranty
Limited
Dimensions
3.75 in H x 2.69 in W
Suitable For Use With
Threaded Metal Conduit System
Features
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • General purpose wiring
  • Universal design with five threaded universal hubs and three close-up plugs
  • Copper-free aluminum body and cover provide resistance to corrosive atmospheres
  • Internally threaded body and externally threaded cover with O-ring for raintight fit
  • Covers have pry notches for bar or wrench
  • Smooth, rounded integral bushing in hub box protects conductor insulation
  • Complies with a wide range of classified area requirements
  • Corrosion-resistant
  • For pulling of wires
  • Connect conduit lengths and change direction of conduit runs, provide access for maintece
  • Provide access for maintece
