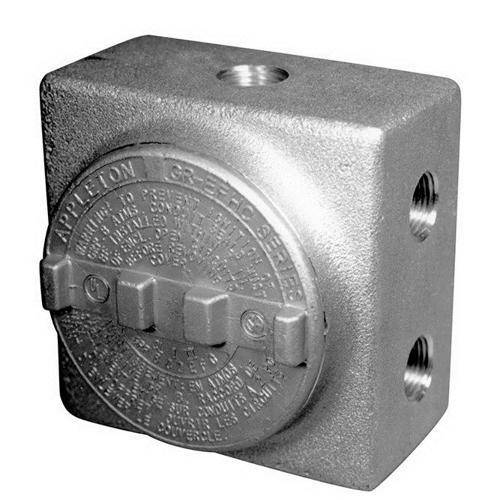

Appleton® UNILETS™ GRSS50 Dust-Ignitionproof Raintight Explosionproof Conduit Outlet Box With Multiple Hubs and Cover, 1/2 in, 3.38 in Cover Opening, 29 cu-in, Epoxy Powder Coated
Share Share Print Print
Appleton

Appleton® UNILETS™ GRSS50 Dust-Ignitionproof Raintight Explosionproof Conduit Outlet Box With Multiple Hubs and Cover, 1/2 in, 3.38 in Cover Opening, 29 cu-in, Epoxy Powder Coated

Short Description

Appleton® explosionproof, dust-ignitionproof, raintight GRSS conduit outlet boxes with multiple hubs are furnished with internal ground screw and O-ring. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintece, allow the connection of different lengths of conduit, and for changing the direction of conduit.

Appleton® UNILETS™ Explosionproof Conduit Outlet Box, Dust-Ignitionproof Raintight, Series: GRSS, 1/2 in Size, 3.38 in Cover Opening, 29 cu-in Capacity, For Use With: Threaded Metal Conduit System, Aluminum, Epoxy Powder Coated Finish, 4.63 in H x 4.63 in W x 3.5 in D Dimensions
MFG #: GRSS50

EECO #: APGRSS50

Brand: Appleton
UPC #: 781381625425
Attributes
Features
Documents
Product Information
Attributes
Finish
Epoxy Powder Coated
UNSPSC
39121308
Material
Aluminum
Application
Indoor/Outdoor Applications
Size
1/2
Type
Dust-Ignitionproof Raintight
Series
GRSS
Capacity
29
Includes
(4) Close-Up Plugs, Internal Ground Screw and O-Ring
Warranty
Limited
Dimensions
4.63 in H x 4.63 in W x 3.5 in D
Suitable For Use With
Threaded Metal Conduit System
Features
  • Explosionproof dust-ignitionproof, raintight
  • Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • Multiple hubs permit flexibility
  • Complies with a wide range of classified area requirements
  • Corrosion-resistant
  • For pulling of wires
  • Connect conduit lengths and change direction of conduit runs
  • Provide access for maintece
  • Internally threaded aluminum bodies with externally threaded aluminum form one covers, has seven hubs - two on each of the sides, one on the top, one on the bottom and one on the center in the back
