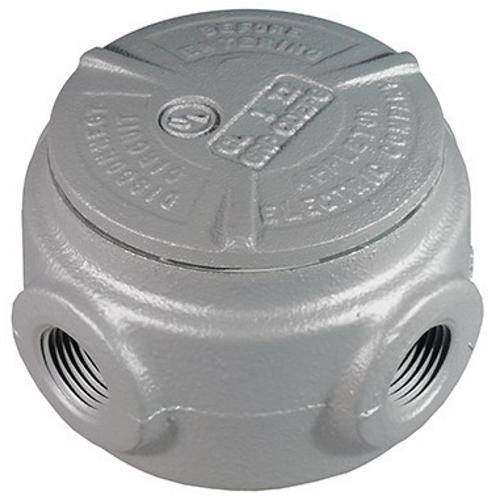

Appleton® UNILETS® GRJS100 Dust-Ignitionproof Explosionproof Raintight Universal Conduit Outlet Box With Cover, 1 in, 2.56 in Cover Opening, 7.3 cu-in, Triple Coated
Share Share Print Print
Appleton

Appleton® UNILETS® GRJS100 Dust-Ignitionproof Explosionproof Raintight Universal Conduit Outlet Box With Cover, 1 in, 2.56 in Cover Opening, 7.3 cu-in, Triple Coated

Short Description

Appleton® explosionproof, dust-ignitionproof, weather resistant (raintight) GRJS universal conduit outlet boxes are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintece, allow the connection of different lengths of conduit, and for changing the direction of conduit.

Appleton® UNILETS® Conduit Outlet Box, Dust-Ignitionproof Explosionproof Raintight Universal, Series: GRJS, 1 in, 2.56 in Cover Opening Size, 7.3 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3.75 in H x 3.75 in W x 1.94 in D
MFG #: GRJS100

EECO #: APGRJS100

Brand: Appleton
UPC #: 781381440950
Attributes
Features
Documents
Product Information
Attributes
Finish
Triple Coated
UNSPSC
39121308
Material
Malleable Iron
Application
Indoor/Outdoor Applications
Size
1
Type
Dust-Ignitionproof Explosionproof Raintight Universal
Series
GRJS
Capacity
7.3
Includes
Internal Ground Screw
Warranty
Limited
Dimensions
3.75 in H x 3.75 in W x 1.94 in D
Suitable For Use With
Threaded Metallic Conduit System
Features
  • Malleable iron bodies have high tensile strength and ductility
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • General purpose wiring
  • Universal design with five threaded openings and three closeup plugs
  • Compact round box for use where space is limited
  • Serve as mounting means for lighting fixtures when used with hub cover
  • Internally threaded body with externally threaded cover
  • Smooth, rounded integral bushing in each hub type box protects conductor insulation
  • Complies with a wide range of classified area requirements
  • Corrosion resistant
  • For pulling of wires
  • Connect conduit lengths and change direction of conduit runs
  • Provide access for maintece
  • Chromate/epoxy powder coated/zinc electroplated finish
