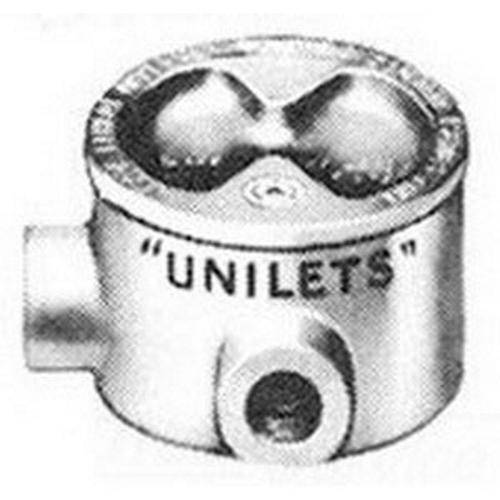

Appleton® UNILETS® GRHL100 Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 1 in, 3.38 in Cover Opening, 13.8 cu-in, Triple Coated
Share Share Print Print
Appleton

Appleton® UNILETS® GRHL100 Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 1 in, 3.38 in Cover Opening, 13.8 cu-in, Triple Coated

Short Description

Appleton® explosionproof, dust-ignitionproof GRH conduit outlet boxes are furnished with internal ground screw and O-ring. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintece, allow the connection of different lengths of conduit, and for changing the direction of conduit.

Appleton® UNILETS® Conduit Outlet Box, Dust-Ignitionproof Explosionproof, Series: GRH, 1 in, 3.38 in Cover Opening Size, 13.8 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3.75 in H x 3.75 in W x 1.63 in D
MFG #: GRHL100

EECO #: APGRHL100

Brand: Appleton
UPC #: 781381439657
Attributes
Features
Documents
Product Information
Attributes
Finish
Triple Coated
UNSPSC
39121308
Material
Malleable Iron
Application
Indoor/Outdoor Applications
Size
1
Type
Dust-Ignitionproof Explosionproof
Series
GRH
Capacity
13.8
Includes
Internal Ground Screw and O-Ring
Warranty
Limited
Dimensions
3.75 in H x 3.75 in W x 1.63 in D
Suitable For Use With
Threaded Metallic Conduit System
Features
  • Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • Furnished with copper-free (4/10 of 1 PCT maximum) aluminum epoxy powder coat cover
  • General purpose wiring
  • Internally threaded body with externally threaded cover
  • Standard O-rings provide raintight fit
  • Internal ground screw standard
  • Smooth, rounded integral bushing in each hub type box protects conductor insulation
  • Complies with a wide range of classified area requirements
  • Corrosion resistant
  • For pulling of wires
  • Connect conduit lengths and change direction of conduit runs
  • Provide access for maintece
  • Chromate/epoxy powder coated/zinc electroplated finish
