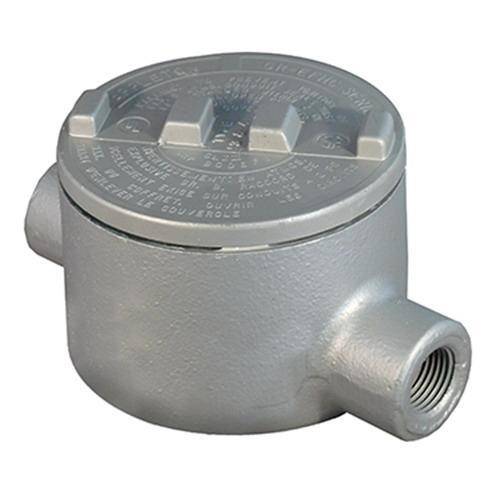

Appleton® UNILETS® GRC200-A C-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 2 in, 4.88 in Cover Opening, 76 cu-in, Epoxy Powder Coated
Share Share Print Print
Appleton

Appleton® UNILETS® GRC200-A C-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 2 in, 4.88 in Cover Opening, 76 cu-in, Epoxy Powder Coated

Short Description

Appleton® explosionproof and dust-ignitionproof GR and GRF conduit outlet boxes are furnished with internal ground screw and O-ring. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintece, allow the connection of different lengths of conduit, and for changing the direction of conduit.

Appleton® UNILETS® Conduit Outlet Box, C-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 2 in, 4.88 in Cover Opening Size, 76 cu-in, For Use With: Threaded Metallic Conduit System, Aluminum, Epoxy Powder Coated, 5-3/4 in H x 5-3/4 in W x 4-1/4 in D
MFG #: GRC200-A

EECO #: APGRC200A

Brand: Appleton
UPC #: 781381116947
Attributes
Features
Documents
Product Information
Attributes
Finish
Epoxy Powder Coated
UNSPSC
39121308
Material
Aluminum
Application
Indoor/Outdoor Applications
Size
2
Type
C-Style Dust-Ignitionproof Explosionproof
Series
GR Series
Capacity
76
Includes
Internal Ground Screw and O-Ring
Warranty
Limited
Dimensions
5-3/4 in H x 5-3/4 in W x 4-1/4 in D
Suitable For Use With
Threaded Metallic Conduit System
Features
  • Offers ten hub arrangements
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • General purpose wiring
  • Function as sealing fittings when used with sealing covers
  • Internally threaded body with externally threaded cover
  • Covers have pry notches for bar or wrench
  • Accommodate sealing, dome, hub and union hub covers and canopies
  • Standard O-rings provide raintight fit
  • Internal ground screw standard
  • Smooth, rounded integral bushing in each hub type box protects conductor insulation
  • Complies with a wide range of classified area requirements
  • Corrosion resistant
  • For pulling of wires
  • Connect conduit lengths and change direction of conduit runs
  • Provide access for maintece
