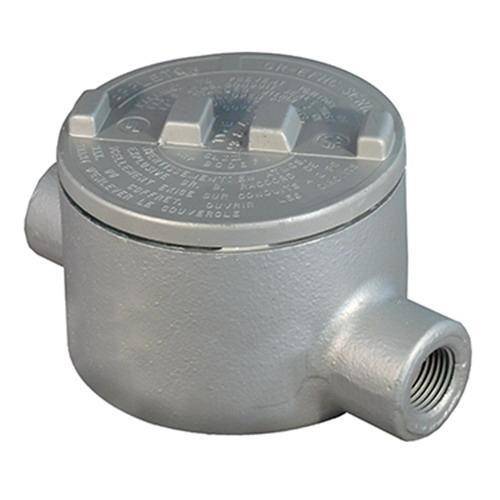

Appleton® Unilets™ GRC100-A Dust-Ignitionproof Explosionproof Conduit Outlet Box, 1 in, 3.38 in Cover Opening, 18 cu-in, Epoxy Powder Coated
Share Share Print Print
Appleton

Appleton® Unilets™ GRC100-A Dust-Ignitionproof Explosionproof Conduit Outlet Box, 1 in, 3.38 in Cover Opening, 18 cu-in, Epoxy Powder Coated

Short Description

Ensure safety and reliability with the Appleton® Unilets™ GRC100-A Dust-Ignitionproof Explosionproof Conduit Outlet Box. Designed for threaded metal conduit systems, this robust outlet box features an epoxy powder-coated finish and ample space with an 18 cu-in capacity. Perfect for demanding environments, it combines durability and functionality in one essential component.Enhanced by AI

Appleton® Unilets™ Conduit Outlet Box, Dust-Ignitionproof Explosionproof, 1 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metal Conduit System, Aluminum, Epoxy Powder Coated, 3-3/4 in H

MFG #: GRC100-A

EECO #: APGRC100A

Brand: Appleton
UPC #: 781381436953
Attributes
Features
Documents
Product Information
Attributes
Finish
Epoxy Powder Coated
UNSPSC
39121308
Material
Aluminum
Application
For pulling of wires, connect conduit lengths and change direction of conduit runs, provide access for maintece and complies with a wide range of classified area requirements and threaded metal conduit
Size
1
Type
Dust-Ignitionproof Explosionproof
Capacity
18
Includes
Aluminum Cover
Dimensions
3-3/4 in H
Suitable For Use With
Threaded Metal Conduit System
Features
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • Furnished with covers
  • General purpose wiring
  • Function as sealing fittings when used with sealing covers
  • Internally threaded body with externally threaded cover
  • Covers have pry notches for bar or wrench
  • Accommodate sealing, dome, hub and union hub covers and canopies
  • Standard O-rings provide raintight fit, NEMA 3/4
  • Internal ground screw standard
  • Smooth, rounded integral bushing in each hub type box protects conductor insulation
  • Complies with a wide range of classified area requirements
  • Corrosion resistant ideal for indoor and outdoor installations
  • For pulling of wires
  • Connect conduit lengths and change direction of conduit runs
  • Provide access for maintece
  • Explosionproof, dust-ignition proof
  • Copper free aluminum material
  • (2) 1 in GRC hub cable entry and 18 cu-in cubic capacity
