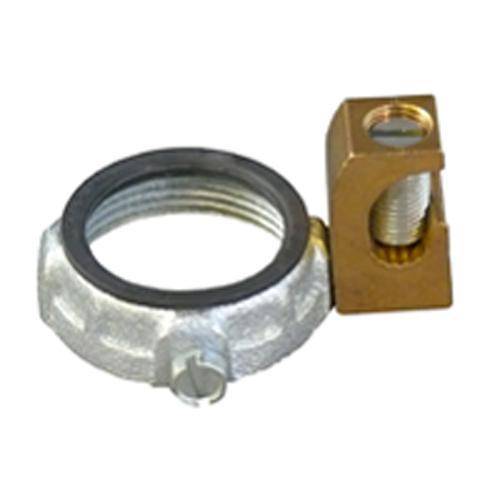

Appleton® GIB-600L-4BC GIB-L-BC Threaded Grounding Bushing, 6 in Trade, #14 AWG Solid Wire Min, #4 AWG Stranded Wire Max, 7-1/4 in Dia, Malleable Iron
Share Share Print Print
Appleton

Appleton® GIB-600L-4BC GIB-L-BC Threaded Grounding Bushing, 6 in Trade, #14 AWG Solid Wire Min, #4 AWG Stranded Wire Max, 7-1/4 in Dia, Malleable Iron

Short Description

Enhance your electrical installations with the Appleton® GIB-600L-4BC Threaded Grounding Bushing. Designed for durability and reliability, this malleable iron bushing accommodates a variety of wire sizes, ensuring secure connections in any environment.Enhanced by AI

Appleton® Grounding Bushing, Threaded, Series: GIB-L-BC, 6 in, #14 AWG Solid Minimum Wire Size, #4 AWG Stranded Maximum Wire Size, Insulated, Lay-In Lug Type, 7-1/4 in Dia, 1.31 in Height, 4-1/4 in Turning Radius, Malleable Iron, Zinc Plated

MFG #: GIB-600L-4BC

EECO #: APGIB600L4BC

Brand: Appleton
UPC #: 781381091886
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Plated
UNSPSC
39121312
Material
Malleable Iron
Trade Size
6
Application
For thread less and threaded RMC IMC Conduit, GIB-L series insulated bushings fasten and ground threaded rigid metal conduit to an enclosure, can be used with a locknut to terminate conduit at an enclosure and lug used to connect bonding jumper to a neutral bus bar
Type
Threaded
Height
1.31
Series
GIB-L-BC
Diameter
7-1/4
Includes
Bronze Lug, Zinc Plated Steel Clamping Screw and Set Screw
Lug Type
Lay-In
Turning Radius
4-1/4
Maximum Wire Size
#4 AWG Stranded
Minimum Wire Size
#14 AWG Solid
Features
  • Insulating liner material is self-extinguishing
  • The plastic liner is tough, won't chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes
  • Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
  • UL listed for use with copper or aluminum grounding conductors
  • Lugs not sold separately
