Appleton® GIB-300LS-20AC GIB-LS-AC Insulated Ground Bushing, 3 in Trade, 14 AWG Wire Min, 2/0 AWG Wire Max, 4.06 in Dia, Malleable Iron
Share Share Print Print
Appleton

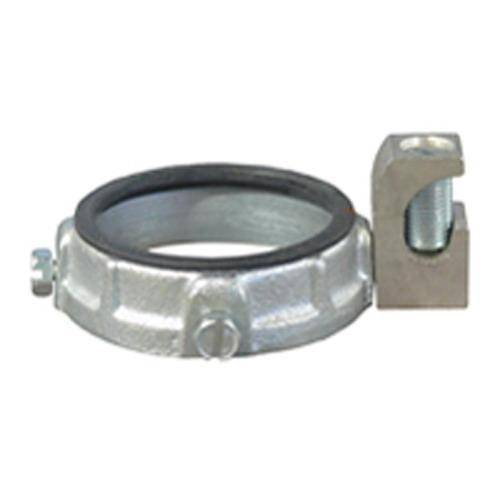

Appleton® GIB-300LS-20AC GIB-LS-AC Insulated Ground Bushing, 3 in Trade, 14 AWG Wire Min, 2/0 AWG Wire Max, 4.06 in Dia, Malleable Iron

Short Description

Appleton® GIB-LS Series IBC-LS Series insulated bushings fasten and ground threadless rigid metal conduit to an enclosure. Appleton® GIB-L Series and O-Z/Gedney IBC-L Series insulated bushings fasten and ground threadless rigid metal conduit to an enclosure. Insulated bushings can be used with a locknut to terminate conduit at an enclosure. The lug is used to connect a bonding jumper to a neutral bus bar.

Appleton® Ground Bushing, Insulated, Series: GIB-LS-AC, 3 in Trade, 14 AWG Minimum Wire, 2/0 AWG Maximum Wire, Tin Plated Aluminum Lay-In Lug, 4.06 in Diameter, 1.31 in Height, 2.81 in Turning Radius, Malleable Iron, Zinc Plated Finish, Appleton® Ground Bushing ADDITIONAL DETAILS
MFG #: GIB-300LS-20AC

EECO #: APGIB300LS20AC

Brand: Appleton
UPC #: 781381091497
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Plated
UNSPSC
39121312
Material
Malleable Iron
Trade Size
3
Application
Threaded Rigid/IMC Conduits
Type
Insulated
Height
1.31
Series
GIB-LS-AC
Diameter
4.06
Lug Type
Tin Plated Aluminum Lay-In
Turning Radius
2.81
Maximum Wire Size
2/0
Minimum Wire Size
14
Features
  • GIB-LS Series insulated bushings fasten and ground threadless rigid metal conduit to an enclosure
  • Can be used with a locknut to terminate conduit at an enclosure
  • Lug used to connect bonding jumper to a neutral busbar
  • Insulating liner material is self-extinguishing
  • GIB-LS Series is provided with a set screw allowing fitting to lock bushing in any desired position
  • UL listed for use with copper or aluminum grounding conductors
  • Lugs not sold separately
  • Steel/zinc plated clamping and set screw
