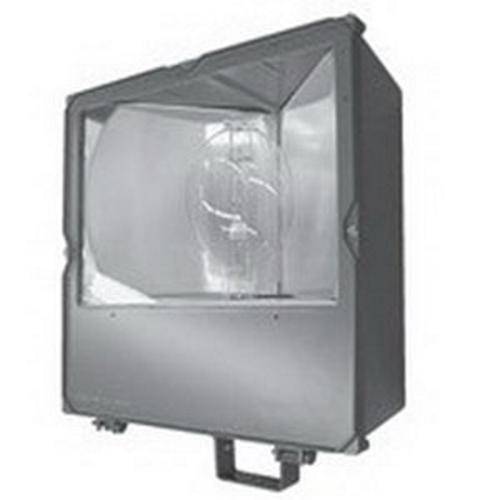

Appleton® Areamaster™ G-AM861L-48 1000 Integrally Ballasted Weatherproof Floodlight Fixture, (1) High Pressure Sodium Lamp, 1100 W Fixture, 480 VAC, Architectural Bronze Polyester Coated Housing
Share Share Print Print
Appleton

Appleton® Areamaster™ G-AM861L-48 1000 Integrally Ballasted Weatherproof Floodlight Fixture, (1) High Pressure Sodium Lamp, 1100 W Fixture, 480 VAC, Architectural Bronze Polyester Coated Housing

Short Description

Illuminate your outdoor spaces with the Appleton® Areamaster™ G-AM861L-48 Floodlight Fixture. Designed for durability and high performance, this weatherproof fixture delivers an impressive 140,000 lumens, ensuring your area is brightly lit and secure. Ideal for various applications, it features a robust architectural bronze polyester coated housing and an impact-resistant glass lens, making it the perfect choice for any environment.Enhanced by AI

Appleton® Areamaster™ Floodlight Fixture, Integrally Ballasted Weatherproof, Series: 1000, 480 VAC, 1100 W Fixture, 2.45 A, High Pressure Sodium Lamp, 1000 W Lamp, Mogul Lamp Base, 1 Lamp, Constant Wattage Autotransformer (CWA) Ballast, Impact-Resistant Glass Lens, 140000 Lumens, Yoke Mounting, Copper-Free Aluminum Housing Material, Architectural Bronze Polyester Coated Housing Finish, 19.69 in H x 11 in W x 26.25 in H Dimensions

MFG #: G-AM861L-48

EECO #: APGAM861L48

Brand: Appleton
UPC #: 781381518697
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111524
Lamp Type
High Pressure Sodium
Application
Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Storage Areas, Parking Garages, Waste and Sewage Treatment Applications
Mounting Type
Yoke
Voltage Rating
480
Number of Lamps
1
Housing Material
Copper-Free Aluminum
Type
Integrally Ballasted Weatherproof
Series
1000
Lens Type
Impact-Resistant Glass
Dimensions
19.69 in H x 11 in W x 26.25 in H
Ballast Type
Constant Wattage Autotransformer (CWA)
Lamp Wattage
1000
Housing Finish
Architectural Bronze Polyester Coated
Lamp Base Type
Mogul
Amperage Rating
2.45
Features
  • Highly efficient, integrally ballasted floodlight
  • Compact, lightweight, yet rugged die-cast aluminum construction
  • Combines architecturally beautiful design with rugged dependability, simple installation and maintece
  • Easy to install and service
  • Wide range of ballasts and voltages are available for both domestic and export applications
  • One-piece housing
  • One-piece lens cover secured by five 1/4 in diameter captive stainless steel slotted hex head bolts
  • Thermal shock and impact resistant glass lens
  • Heavy duty, high temperature silicone rubber gasket, firmly seated
  • Heavy duty mogul base porcelain socket with heavy gauge brass, nickel-plated, double lamp-grip screw shell and spring loaded center contact
  • Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
  • 3/4 in NPT tapped hub for power entry
Appleton_CLB1010_MT_Warranty
Appleton_G_AM861H_MT_I_2_Specification_Sheet
Appleton_G_AM861H_MT_I_2_User_Manual
