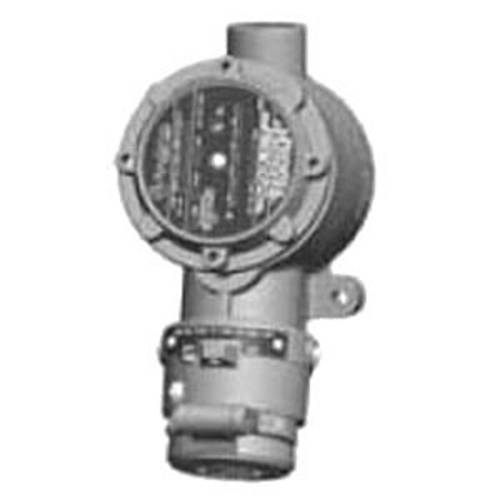

Appleton® FSQC5640 3-Phase Dust-Ignitionproof Switched Explosionproof Receptacle With Mounting Box, 600/250 VAC/VDC, 60 A, 4 Poles, 3 Wires
Share Share Print Print
Appleton

Appleton® FSQC5640 3-Phase Dust-Ignitionproof Switched Explosionproof Receptacle With Mounting Box, 600/250 VAC/VDC, 60 A, 4 Poles, 3 Wires

Short Description

FSQC 30, 60 and 100 A Series Receptacles incorporate an interlocked disconnect switch for added safety in hazardous environments. The explosionproof and dust-ignitionproof FSQC is designed for use with Powertite® plugs. Simply insert the plug and rotate the receptacle face to the ON position to lock it in place and energize the receptacle. For installations where different line voltages are used, a special polarization option prevents plug insertion into a receptacle wired for a different voltage.

Appleton® Switched Explosionproof Receptacle, 3-Phase Dust-Ignitionproof, Series: FSQC, 600/250 VAC/VDC, 60 A, 30 hp, 4 Pole, 3 Wires, NEMA 3/3R/4/4X/7CD/9FG NEMA, Aluminum

MFG #: FSQC5640

EECO #: APFSQC5640

Brand: Appleton
UPC #: 781381208895
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121406
Material
Aluminum
Application
Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps Applications
Voltage Rating
600/250
Number of Wires
3
Type
3-Phase Dust-Ignitionproof
Series
FSQC
Warranty
Limited
Horsepower
30
Amperage Rating
60
Features
  • Shell and extra pole grounding style 2
  • Interlocked Disconnect Switch provides safe connect and disconnect operation at 30, 60 or 100 A, 600 VAC maximum, three pole, non-fused motor circuit switch
  • To operate, insert plug and turn receptacle face to On position, to remove plug, turn to Off position and pull plug out
  • Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied
  • Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • Contacts have beryllium copper wire springs
  • Large housing provides ample wiring room
  • Powertite™ series plug fits hazardous location FSQC receptacles
