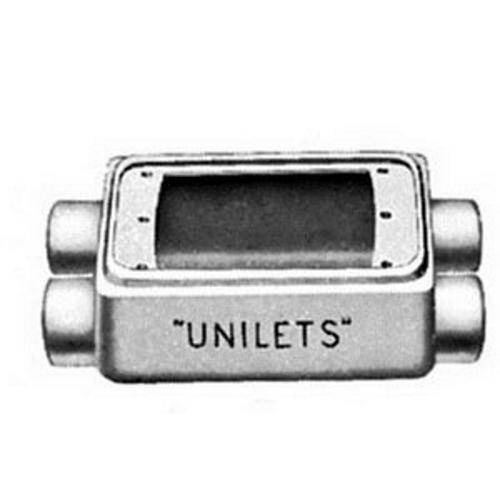

Appleton® UNILETS™ FSCD-1-50 Type FSCD Heavy Duty Shallow Device Box With Internal Ground Screw, Malleable Iron, 25 cu-in Capacity, 1 Gangs, 4 Outlets, 4 Knockouts, 4.56 in H x 2.81 in W x 2 in D
Share Share Print Print
Appleton

Appleton® UNILETS™ FSCD-1-50 Type FSCD Heavy Duty Shallow Device Box With Internal Ground Screw, Malleable Iron, 25 cu-in Capacity, 1 Gangs, 4 Outlets, 4 Knockouts, 4.56 in H x 2.81 in W x 2 in D

Short Description

Enhance your electrical installations with the Appleton® UNILETS™ FSCD-1-50 Heavy Duty Shallow Device Box. Designed for durability and efficiency, this malleable iron box features a 25 cu-in capacity, accommodating 4 outlets and 4 knockouts. Perfect for any project requiring reliable and robust electrical solutions.Enhanced by AI

Appleton® UNILETS™ Device Box, Type FSCD Heavy Duty Shallow, 4 Outlets, 1 Gangs, 4 Knockouts, 1/2 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Malleable Iron, Tri-Coated, 4.56 in H x 2.81 in W x 2 in D

MFG #: FSCD-1-50

EECO #: APFSCD150

Brand: Appleton
UPC #: 781381345750
Attributes
Features
Documents
Product Information
Attributes
Finish
Tri-Coated
UNSPSC
39121315
Hub Size
1/2
Material
Malleable Iron
Application
For use with threaded rigid/IMC conduit
Enclosure Type
NEMA FB-1
Number of Gangs
1
Number of Outlets
4.0000
Number of Knockouts
4.0000
Type
Type FSCD Heavy Duty Shallow
Capacity
25
Includes
Internal Ground Screw and Mounting Lug
Dimensions
4.56 in H x 2.81 in W x 2 in D
Features
  • Corrosion-resistant ideal for indoor and outdoor installations
  • Weatherproof, raintight and dust tight when used with cast gasketed covers
  • FS and FD boxes take standard flush wiring devices
  • FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
  • Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
  • Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Complete selection of covers, receptacles, plugs, gaskets and accessories
  • Covers have captive stainless steel screws to speed installation, prevents loss of screws
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accommodate wiring devices such as switches and receptacles
  • Provide excellent service in areas where boxes are subject to rough usage
  • Serve as pull boxes for conductors
  • Permit access to conductors for maintece
  • Provide openings for making splices
  • Allow connections for branch conduit runs
  • Blank bodies for special conduit entrance arrangements
  • Without knockouts
