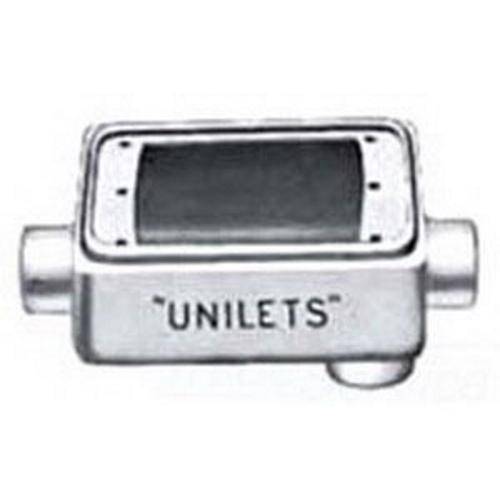

Appleton® UNILETS™ FSCA-1-50 Type FSCA Heavy Duty Shallow Device Box With Internal Ground Screw, Malleable Iron, 25 cu-in Capacity, 1 Gangs, 3 Outlets, 3 Knockouts, 4.56 in H x 2.81 in W x 2 in D
Share Share Print Print
Appleton

Appleton® UNILETS™ FSCA-1-50 Type FSCA Heavy Duty Shallow Device Box With Internal Ground Screw, Malleable Iron, 25 cu-in Capacity, 1 Gangs, 3 Outlets, 3 Knockouts, 4.56 in H x 2.81 in W x 2 in D

Short Description

Discover the Appleton® UNILETS™ FSCA-1-50 Heavy Duty Shallow Device Box, designed for durability and efficiency. With a robust malleable iron construction, this device box features 3 outlets, 3 knockouts, and a generous 25 cu-in capacity, making it the perfect solution for your electrical needs. Ideal for both commercial and industrial applications!Enhanced by AI

Appleton® UNILETS™ Device Box, Type FSCA Heavy Duty Shallow, 3 Outlets, 1 Gangs, 3 Knockouts, 1/2 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Malleable Iron, Tri-Coated, 4.56 in H x 2.81 in W x 2 in D

MFG #: FSCA-1-50

EECO #: APFSCA150

Brand: Appleton
UPC #: 781381345354
Attributes
Features
Documents
Product Information
Attributes
Finish
Tri-Coated
UNSPSC
39121315
Hub Size
1/2
Material
Malleable Iron
Application
For use with threaded rigid/IMC conduit
Enclosure Type
NEMA FB-1
Number of Gangs
1
Number of Outlets
3.0000
Number of Knockouts
3.0000
Type
Type FSCA Heavy Duty Shallow
Capacity
25
Includes
Internal Ground Screw and Mounting Lug
Dimensions
4.56 in H x 2.81 in W x 2 in D
Features
  • Corrosion-resistant ideal for indoor and outdoor installations
  • Weatherproof, raintight and dust tight when used with cast gasketed covers
  • FS and FD boxes take standard flush wiring devices
  • FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
  • Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
  • Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Complete selection of covers, receptacles, plugs, gaskets and accessories
  • Covers have captive stainless steel screws to speed installation, prevents loss of screws
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accommodate wiring devices such as switches and receptacles
  • Provide excellent service in areas where boxes are subject to rough usage
  • Serve as pull boxes for conductors
  • Permit access to conductors for maintece
  • Provide openings for making splices
  • Allow connections for branch conduit runs
  • Blank bodies for special conduit entrance arrangements
  • Without knockouts
