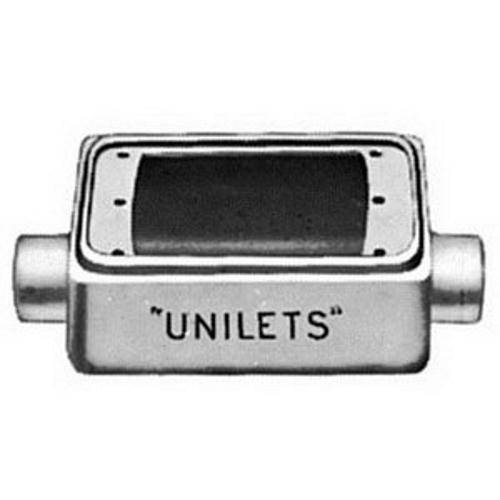

Appleton® UNILETS™ FSC-1-100-A Type FSC Heavy Duty Shallow Device Box With Internal Ground Screw, Aluminum, 25 cu-in Capacity, 1 Gangs, 2 Outlets, 2 Knockouts, 4.56 in H x 2.81 in W x 2 in D

Short Description

6.31 x 3.5 x 2, (2) 1" Hub, 1-Gang, Epoxy Powder Coated Copper-Free Aluminum, Shallow, Cast Hub Device Box

Appleton® UNILETS™ Device Box, Type FSC Heavy Duty Shallow, 2 Outlets, 1 Gangs, 2 Knockouts, 1 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Aluminum, Epoxy Powder Coated, 4.56 in H x 2.81 in W x 2 in D
MFG #: FSC-1-100-A

EECO #: APFSC1100A

Brand: Appleton
UPC #: 781381344005
Attributes
Features
Documents
Product Information
Attributes
Shape
Shallow
Finish
Epoxy Powder Coated
UNSPSC
39121315
Approval
UL 514A/E2527, CSA C22.2
Hub Size
1
Material
Aluminum
Application
For use with threaded rigid/IMC conduit
Hub Location
(1) Each End
Enclosure Type
NEMA FB-1
Number of Hubs
2
Number of Gangs
1
Number of Outlets
2.0000
Number of Knockouts
2.0000
Type
Type FSC Heavy Duty Shallow
Depth
2 Inch
Width
3.5 Inch
Height
6.31 Inch
Capacity
25
Includes
Internal Ground Screw and Mounting Lug
Dimensions
4.56 in H x 2.81 in W x 2 in D
Configuration Type
FSC
Features
  • Corrosion-resistant ideal for indoor and outdoor installations
  • Weatherproof, raintight and dust tight when used with cast gasketed covers
  • FS and FD boxes take standard flush wiring devices
  • FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
  • Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
  • Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Complete selection of covers, receptacles, plugs, gaskets and accessories
  • Covers have captive stainless steel screws to speed installation, prevents loss of screws
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accommodate wiring devices such as switches and receptacles
  • Provide excellent service in areas where boxes are subject to rough usage
  • Serve as pull boxes for conductors
  • Permit access to conductors for maintece
  • Provide openings for making splices
  • Allow connections for branch conduit runs
  • Blank bodies for special conduit entrance arrangements
  • Without knockouts
APFSC1100ACAT
Appleton_CLB1010_MT_Warranty
Appleton_FSKWGF1_Specification_Sheet
Qty Unit price
Ea
1 $30.27

Slqt
1 $30.27

Stpk
1 $30.27

Unit
1 $30.27
