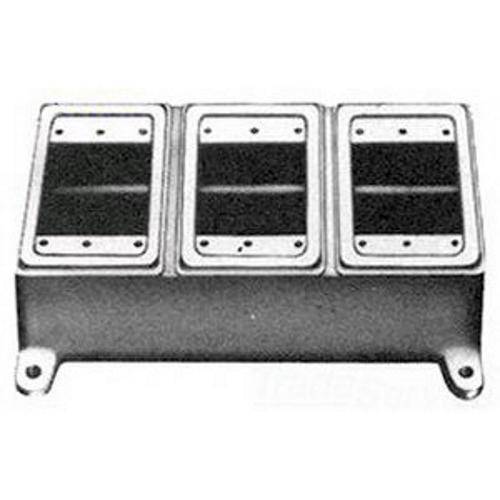

Appleton® UNILETS™ FD-3L Type FDH Deep Device Box With Internal Ground Screw, Malleable Iron, 98 cu-in Capacity, 3 Gangs, 11 Knockouts, 6.31 in H x 10.19 in W x 2.69 in D
Share Share Print Print
Appleton

Appleton® UNILETS™ FD-3L Type FDH Deep Device Box With Internal Ground Screw, Malleable Iron, 98 cu-in Capacity, 3 Gangs, 11 Knockouts, 6.31 in H x 10.19 in W x 2.69 in D

Short Description

Upgrade your electrical installations with the Appleton® UNILETS™ FD-3L Deep Device Box. Crafted from durable malleable iron, this robust box features a generous 98 cu-in capacity, 3 gangs, and 11 knockouts, ensuring versatility and reliability for all your wiring needs.Enhanced by AI

Appleton® UNILETS™ Device Box, Type FDH Deep, 3 Gangs, 11 Knockouts, 3/4 in Hub, Brazed Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, Lug Mount, 98 cu-in, Malleable Iron, Tri-Coated, 6.31 in H x 10.19 in W x 2.69 in D

MFG #: FD-3L

EECO #: APFD3L

Brand: Appleton
UPC #: 781381334808
Attributes
Features
Documents
Product Information
Attributes
Finish
Tri-Coated
UNSPSC
39121315
Hub Size
3/4
Material
Malleable Iron
Application
For use with threaded rigid/IMC conduit
Mounting Type
Lug
Enclosure Type
NEMA FB-1
Number of Gangs
3
Number of Knockouts
11.0000
Type
Type FDH Deep
Capacity
98
Includes
Mounting Lugs
Dimensions
6.31 in H x 10.19 in W x 2.69 in D
Features
  • Corrosion-resistant ideal for indoor and outdoor installations
  • Weatherproof, raintight and dust tight when used with cast gasketed covers
  • FS and FD boxes take standard flush wiring devices
  • FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
  • Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
  • Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Complete selection of covers, receptacles, plugs, gaskets and accessories
  • Covers have captive stainless steel screws to speed installation, prevents loss of screws
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accommodate wiring devices such as switches and receptacles
  • Provide excellent service in areas where boxes are subject to rough usage
  • Serve as pull boxes for conductors
  • Permit access to conductors for maintece
  • Provide openings for making splices
  • Allow connections for branch conduit runs
  • Blank bodies for special conduit entrance arrangements
  • Without knockouts
