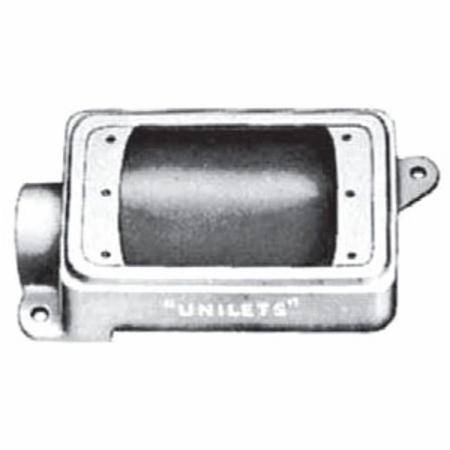

3/4" Hub, 1-Gang, Emerson Electric Co. FD-1-75L Unilet® Cast Device Box, Deep
Share Share Print Print
Appleton

3/4" Hub, 1-Gang, Emerson Electric Co. FD-1-75L Unilet® Cast Device Box, Deep

Short Description

2.81" x 2.69" x 5.88", 1-Gang, 3/4" Hub, Zinc Electroplated Chromate Epoxy Powder Coated, Malleable Iron, Deep, Cast Device Box

Cast Device Box; Height 5.88 Inch; Width 2.81 Inch; Depth 2.69 Inch; Capacity 25 Cubic Inch; Number of Gangs 1; Number of Hubs 1; Hub Location End; Hub Size 3/4 Inch; Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Body), Neoprene (Gasket), Stainless Steel (Screw); Shape Deep; Configuration Type FD; Mounting Hardware (2) Lug; Approval UL 514A; Constructional Feature Corrosion Resistant, Weatherproof, Rain Tight, Dust Tight; Application Accommodate Wiring Device, Serve as Pull Box for Conductor, Indoor/Outdoor; Applicable Standard FB-1

MFG #: FD-1-75L

EECO #: APFD175L

Brand: Appleton
UPC #: 781381322423
Attributes
Features
Documents
Product Information
Attributes
Shape
Deep
UNSPSC
39121315
Approval
UL 514A
Hub Size
3/4 Inch
Material
Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Body), Neoprene (Gasket), Stainless Steel (Screw)
Hub Location
End
Number of Hubs
1
Number of Gangs
1
Depth
2.69 Inch
Width
2.81 Inch
Height
5.88 Inch
Capacity
25 Cubic Inch
Mounting Hardware
(2) Lug
Configuration Type
FD
Features
  • Corrosion Resistant Ideal for Indoor and Outdoor Installations
  • Weatherproof, Rain Tight and Dust Tight When Used with Cast Gasketed Covers
  • Accurately Tapped, Tapered Threads for Tight, Rigid Joints, Ground Continuity
  • Internal Grounding Screws Standard
  • Smooth, Rounded Integral Bushing in Each Hub Protects Conductor Insulation
  • Corrosion Resistant, Weatherproof, Rain Tight, Dust Tight Construction
APLTONE00873_60_63_66
Qty Unit price
Ea
1 $39.82

Slqt
1 $39.82

Stpk
1 $39.82

Unit
1 $39.82
