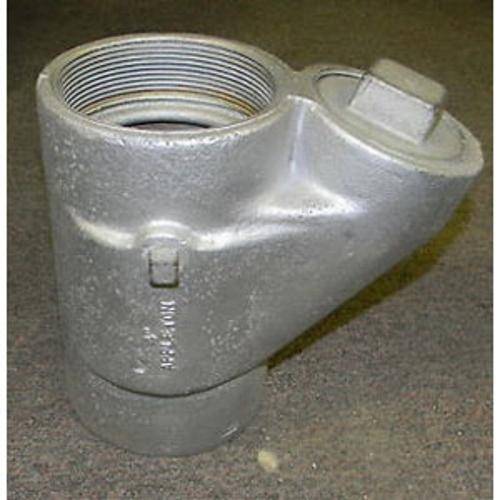

Appleton® UNILETS® EYSF400 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated
Share Share Print Print
Appleton

Appleton® UNILETS® EYSF400 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated

Short Description

These Appleton® sealing fittings minimize the passage of gases and vapors and prevent the passage of flames from one portion of a conduit system to another. They prevent pressure piling within conduit system and contain any explosion that occurs. The EYS series is used for sealing vertical conduit, and provides a large opening for damming and filling.

Appleton® UNILETS® Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: EYS, 4 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated, 8.63 in L x 5.13 in W
MFG #: EYSF400

EECO #: APEYSF400

Brand: Appleton
UPC #: 781381331258
Attributes
Features
Documents
Product Information
Attributes
Finish
Triple Coated
UNSPSC
39121311
Material
Malleable Iron
Application
For prevent passage of gases, vapors or flames from one portion of conduit system to another
Size
4
Type
Dust-Ignitionproof Explosionproof Raintight
Series
EYS
Warranty
Limited
Dimensions
8.63 in L x 5.13 in W
Suitable For Use With
IMC/Threaded Rigid Metallic Conduit
Features
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Large opening for damming and filling
  • Restrict any explosion to the sealed off enclosure
  • Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
  • Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
  • Tapered FNPT connection
  • 25% fill vertical conduit sealing fittings
  • Chromate/epoxy powder coated/zinc electroplated finish
